QuantaMesh 1000 Series T1048-LB9A

1G/10G Enterprise-Class Ethernet switch

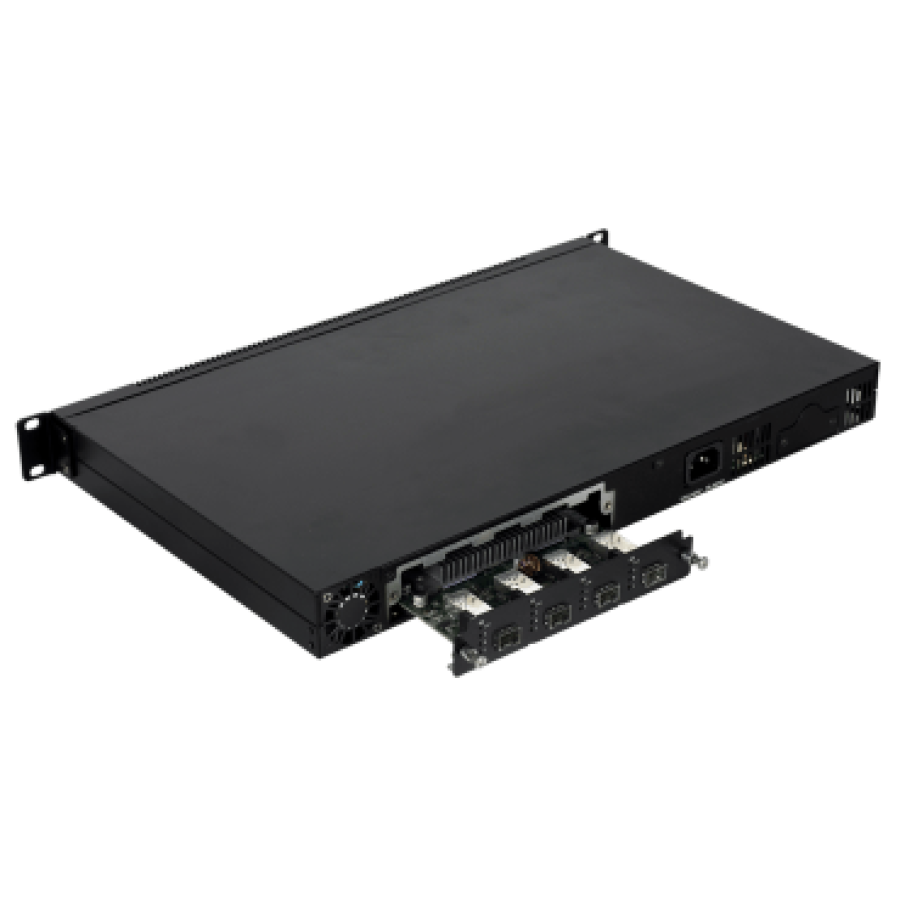

The QuantaMesh T1048-LB9A is a high performance layer 2/3/4 Ethernet switch with 48 10Base-T/100Base-TX/1000Base-T ports and 4 dual speed 1GbE/10GbE SFP+ ports in a compact rack unit size.

Simplicity

The QuantaMesh T1048-LB9A can be managed through industry-standard command-line Interface (CLI) which reduces the training and operating costs. A user friendly Web GUI is provided via a standard Web browser for switch management. The QuantaMesh T1048-LB9A also supports Simple Network Management Protocol (SNMP) both from standard MIB and private MIB to help network administrators easily configure, monitor, and manage operation remotely. The Auto-Installation feature implemented in the QuantaMesh T1048-LB9A helps centralized management to simplify deployment of a truly plug-and-play experience. With the evolution from IPv4 to IPv6, the QuantaMesh T1048-LB9A is a IPv6 integrated management device.

High Availability

The QuantaMesh T1048-LB9A is designed for high availability from both hardware and software perspective. The key features include:

• Out-of-band management supported
• 802.1D, 802.1w, and 802.1s supported
• Up to 8 ports per link aggregation group (LACP) and up to 64 groups
• Multi-chassis LAG for preventing the risks of single point failure
• Up to 32 paths ECMP routing for load balancing and redundancy
• Virtual Router Redundancy Protocol supported

High-Performance L2/L3 access deployments

With the compact 1U form factor, high density 48 gigabit ports and 4 dual speed 1GbE/10GbE uplink ports, the QuantaMesh T1048-LB9A is ideal for enterprise campus application. The 176Gbps switching capacity and 131Mpps forwarding rate ensures high bandwidth connectivity to the aggregation or core layers and low power consumption ensure make the QuantaMesh T1048-LB9A a powerful solution to aggregate data traffic and high-performance servers. The 4-port 10GbE density in a 1U height switch provides near 1:1 subscription ratio throughout the network. This brings the benefits to organizations to deploy highly utilized networks and avoid congestion during peak hours.

Advanced IPv4 and IPv6 routing

The QuantaMesh T1048-LB9A is a fully layer 2 and layer 3 routing switch that supports advanced IPv4 and IPv6 routing features such as RIP v1/v2, OSPF, ECMP, RIPng and OSPFv3. The multicast routing features for IGMP v1/v2/v3, DVMRP, PIM-DM/SM, MLD v1/v2 and PIM-DM6/SM6 are all supported in the QuantaMesh T1048-LB9A.
