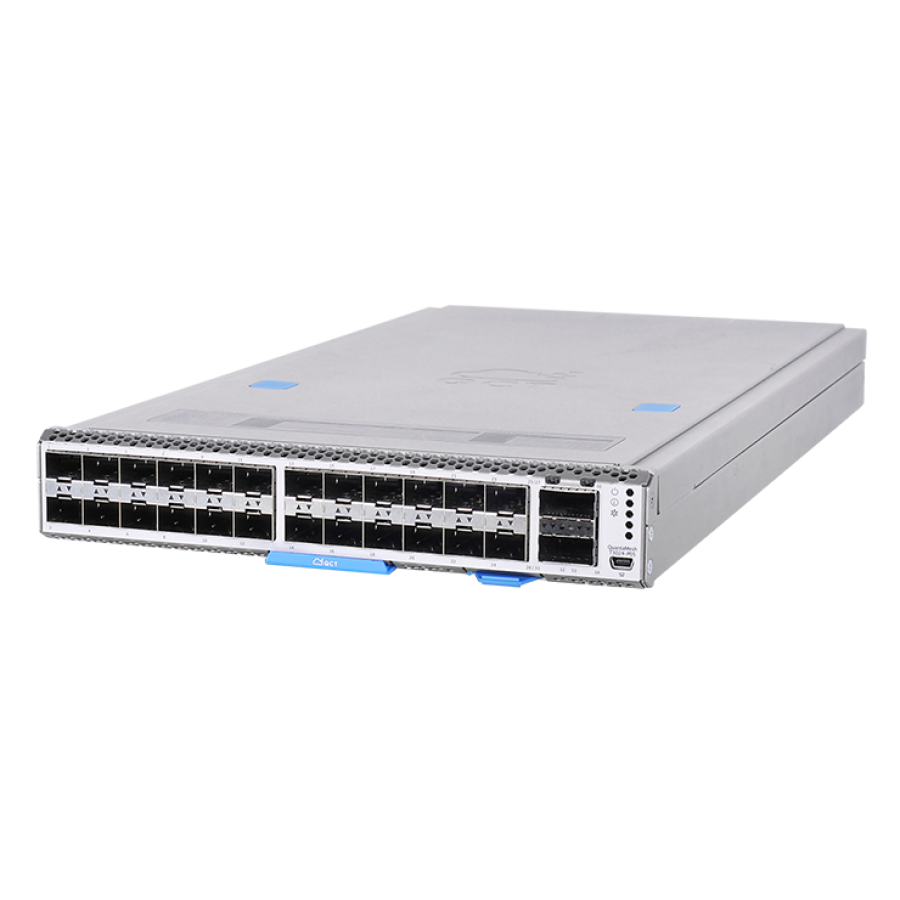

QuantaMesh T3024-P05
A Powerful Top-of-Rack Switch for Datacenters and Cloud Computing
The QuantaMesh T3024-P05 is a high performance and low latency layer 2/3/4 Ethernet switch with 24 1/10GbE SFP+ and 2 40GbE QSFP+ ports located in a half-rack width and 1U height rack unit size. The 2 40GbE ports provide 80Gbps to aggregate bandwidth up to the core switch. Each 40 Gigabit Ethernet port can be independently configured as 40GbE or 4 x 10GbE for total 32 ports of 10GbE.
 |
 |
Simplicity
The QuantaMesh T3024-P05 can be managed through an industry standard command-line interface (CLI) which reduces training and operating costs. The QuantaMesh T3024-P05 also supports Simple Network Management Protocol (SNMP) both from standard MIB and private MIB for easy configuration, monitoring, and remote management for the network administrator. The Auto-Installation feature implemented in the QuantaMesh T3024-P05 helps centralized management to simplify deployment of a truly plug-and-play experience. With the evolution from IPv4 to IPv6, the QuantaMesh T3024-P05 is a IPv6 integrated management device.
High Availability
The QuantaMesh T3024-P05 is designed for high availability from both hardware and software perspective. The key features include:
Out-of-band management support
802.1w, and 802.1s supported
Up to 32 ports per group (LACP) and up to 64 groups
Up to 32 paths ECMP routing for load balancing and redundancy
Virtual Router Redundancy Protocol supported
Multi-chassis Link Aggregation
High-Performance L2/L3 access deployments
With the compact 1U form factor, high density 24 1/10G SFP+ and 2 40G QSFP+ ports in the front panel, front to back or back to front airflow design, the QuantaMesh T3024-P05 is ideal for top-of-rack deployments in high-performance, highly demanding datacenters. The 640 gigabits per second switching capacity and 476Mpps forwarding rate with low power consumption make the QuantaMesh T3024-P05 a powerful solution to aggregate high-performance servers in the datacenter.
| Physical ports | |
|---|---|
| Port configuration | 24 1/10GbE SFP+ and 2 40GbE QSFP+ ports
|
| Management Port | Out-of-band management port (RJ-45, 10/100/1000Base-T)
|
| Console Port | 1 (RJ-45)
|
| USB | 1 (v2.0)
|
| Performance | |
|---|---|
| Switching capacity | 640Gbps
|
| Maximum forwarding rate | 476Mpps
|
| Latency | <1us
|
| Major Components | |
|---|---|
| ASIC | Broadcom StrataXGS Trident+
|
| CPU | PPC P2020
|
| Layer 2 Features | |
|---|---|
| Switching Mode | Store-and-Forward
|
| Spanning Tree | 802.1w
802.1s Auto Edge |
| VLAN | IEEE 802.1Q Tagged Base
Port-Based QinQ (802.1ad) |
| Storm Control | Broadcast
Unknown Multicast DLF (Unknown Unicast) |
| IGMP Snooping | v1/v2/v3
v1/v2 Querier Immediate Leave |
| Link Aggregation | 802.3ad with LACP
Static Trunk Unicast/Multicast Traffic Balance over Trunking Port LACP Fallback |
| Link State | |
| Port Backup | |
| Loopback Detection | |
| Private VLAN | |
| QoS Features | |
|---|---|
| Scheduling for priority queue | WRR, Strict, and Hybrid
|
| COS | 802.1p, IP TOS precedence, & DSCP
|
| DiffServ | |
| iSCSI optimization | |
| Security Features | |
|---|---|
| Static and dynamic port security (MAC-based) | |
| 802.1x | Port-based, MAC-based, auto VLAN assignment, guest VLAN, unauthenticated VLAN
|
| Access Control List | L2/L3/L4
|
| IPv6 ACL | L3/L4
|
| RADIUS | Authentication, Authorization, Accounting
|
| TACACS+ | Authentication
|
| SSH 1.5/V2.0 | |
| User name and password | Local Authentication, Remote Authentication via RADIUS/TACACS+, AAA
|
| Management IP filtering | SNMP
Telnet SSH |
| IP Source Guard | |
| Dynamic ARP inspection (DAI) | |
| DHCP snooping | IPv4
IPv6 |
| Control Plane Policing / CoPP | |
| Service Prohibit Access | |
| Role Base Access Control (RBAC) | |
| Layer 3 Features | |
|---|---|
| IP Multinetting/CIDR | |
| /31 subnets | |
| Proxy ARP | |
| Static route | IPv4
IPv6 |
| OSPF v2/v3 | |
| ECMP | |
| BGP4 | |
| IGMP v1/v2/v3 | |
| PIM-SM/-SM6 | |
| MLD v1/v2 | |
| VRRP v2 | |
| Policy-Based Routing (PBR) | |
| BFD | |
| VRF Lite | |
| Management Features | |
|---|---|
| Industrial standard command-line interface | |
| CLI filtering | |
| CLI schedule | |
| Telenet/SSH | |
| Software Update | TFTP
FTP SCP SFTP |
| Configuration Update | TFTP
FTP SCP SFTP |
| Dual Images | |
| SNMP v1/v2c/v3 | |
| SNMP inform v2 | |
| RMON1 Groups: 1, 2, 3 & 9 | |
| BOOTP | client/relay
|
| DHCP client | |
| DHCP relay | |
| DNS client | |
| DNS relay | |
| Remote PING | |
| Traceroute | |
| NTPv4 | |
| LLDP | 802.1ab
802.MED Potential error detection |
| UDLD | |
| Port mirroring | SPAN
RSPAN |
| sFlow v5 | |
| Email alerting | SMTP
|
| Error-Disable Recovery | |
| Fluentd | |
| IPv6 Management | |
|---|---|
| IPv4/IPv6 Dual Protocol Stack | |
| ICMPv6 | |
| ICMPv6 Redirect | |
| IPv6 Neighbor Discovery | |
| Stateless Autoconfiguration | |
| Manual Configuration | |
| DHCPv6 | |
| SNMP over IPv6 | |
| SSH over IPv6 | |
| IPv6 Telnet Support | |
| IPv6 DNS Resolver | |
| IPv6 RADIUS Support | |
| IPv6 TACACS+ Support | |
| IPv6 Syslog Support | |
| IPv6 SNTP Support | |
| IPv6 TFTP Support | |
| High Availability | |
|---|---|
| Multi-Chassis Link Aggregation (MLAG) | |
| Data Center Features | |
|---|---|
| Enhanced Transmission Selection (802.1Qaz) | |
| Priority-based Flow Control (802.1Qbb) | |
| DCBX | DCBX for ETS
DCBX for PFC |
| FCoE Initiation Protocol (FIP) snooping | |
| Automation | |
|---|---|
| Auto installation | |
| RESTful API | |
| Ansible | |
| SDN | |
|---|---|
| OpenFlow | v1.3
|
| Mechanical | |
|---|---|
| Dimension (HxWxD) | 40x220x422mm
|
| Weight | 3.2kg/7.04lbs (NET)
|
| Environmental Specifications | |
|---|---|
| Operating temperature | 0~45°C
|
| Operating humidity | 90% maximum relative humidity
|
| Electrical | |
|---|---|
| Power requirement | 100~240VAC, 50/60Hz
|
| Power consumption | 90 watts (L2 64B line rate; 10G-SR optics, 100% fan duty)
|
| Safety | |
|---|---|
| Safety | UL, cUL, CB, BSMI, CCC
|
| EMC | |
|---|---|
| EMC | CE, FCC, VCCI, KCC, BSMI, CCC
|
| RoHS | |
|---|---|
| RoHS | Reduction of Hazardous Substances (RoHS) 6
|
| Supported Optics and Cables | |
|---|---|
| Supported Optics and Cables | DAC cable (SFP+): 0.5m, 1m, 1.5m, 2m, 2.5m, 3m, and 5m
AOC cable (SFP+, 850nm, MMF): 1m, 3m, 7m, 10m, 20m, and 100m DAC cable (QSFP+): 1m, 3m, and 5m DAC cable (QSFP+, fan-out): 1m, 3m, and 5m AOC cable (QSFP+, 850nm, MMF): 7m, 10m, and 20m 10G optic (SFP+, LC, 850nm, MMF): 10GBASE-SR optic 10G optic (SFP+, LC, 1310nm, SMF): 10GBASE-LR optic 40G optic (QSFP+, MPO, 850nm, MMF): 40GBASE-SR4 40G optic (QSFP+, LC, 1310nm, SMF): 40GBASE-LR4 |
| Order Information | |
|---|---|
| Order Information | T3024-P05 (1P05BZZ0ST0) (F-2-B)
T3024-P05 (1P05BZZ0ST1) (B-2-F) Rack-Mount-Kit (1HY9ZZZ058P) |
| Title | Version | Date | Size | |
|---|---|---|---|---|
| QuantaMesh_T3024-P05 | 1 | 3-8-20 | 292KB |  |
| Title | Version | Date | Size | |
|---|---|---|---|---|
| QNOS5 CLI user Guide | 1 | 01-10-20 | 7.86MB | |
| Title | Version | Date | Size | |
|---|---|---|---|---|
| HS Product Catalog | 1 | 01-10-20 | 6371KB | |
T3024-P05
A Powerful Top-of-Rack switch for Datacenter and Cloud Computing
- Ultra-low Latency
- MLAG, OSPF, BGP4, ECMP
- Network Automation
-
$AUD $5,541.25
*RRP Pricing*To View Channel Discounts Please Login
