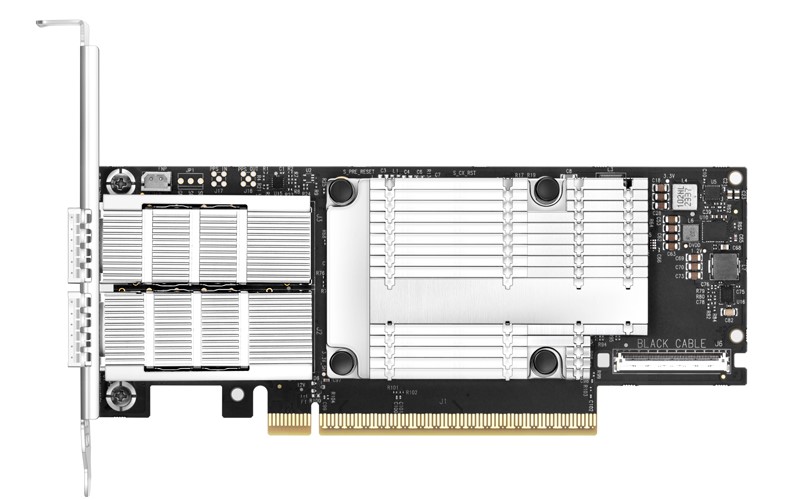

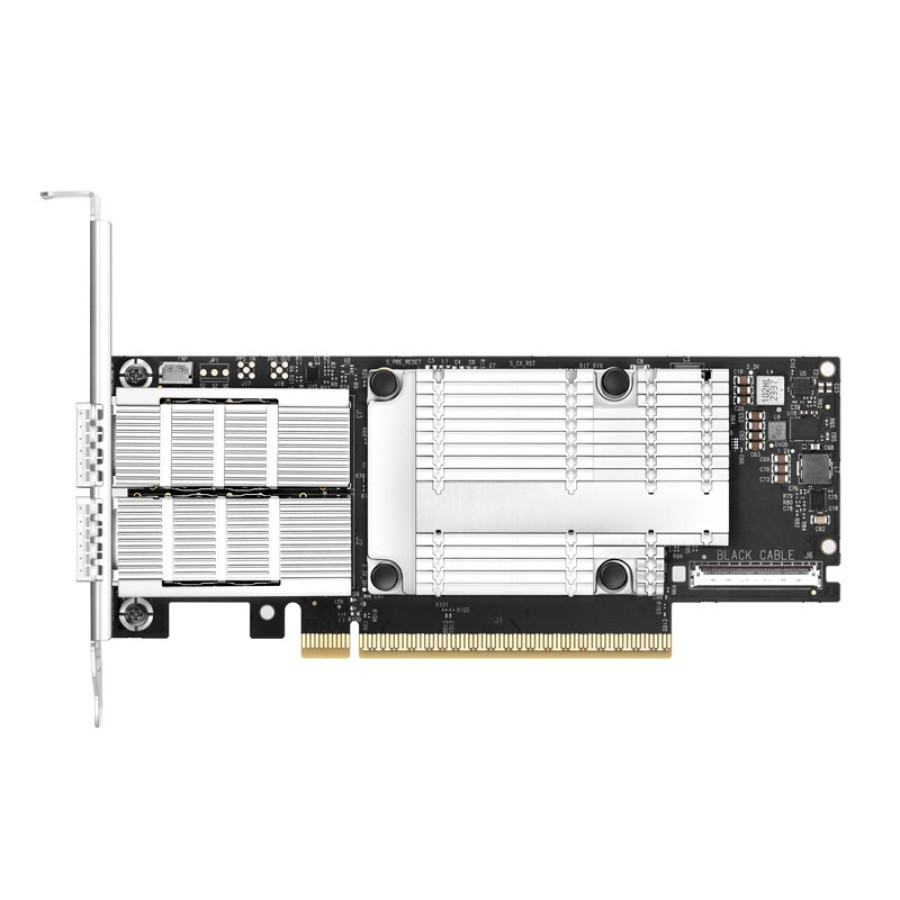

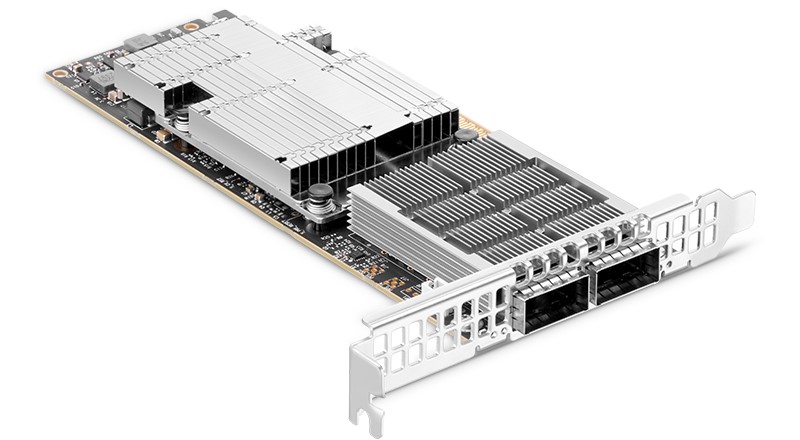

HHHL 200Gb QSFP112 2 port NVIDIA(Mellanox) MCX755106AS-HEAT NDR200 CX755106A ConnectX-7 PCI-E X16 Gen 5

Overview The NVIDIA MCX755106AS-HEAT ConnectX-7 Adapter Card is a versatile, high-performance solution supporting 200GbE and NDR200 InfiniBand. With Secure Boot, Crypto Enabled features, and a PCIe 5.0 x16 interface, it

Overview

The NVIDIA MCX755106AS-HEAT ConnectX-7 Adapter Card is a versatile, high-performance solution supporting 200GbE and NDR200 InfiniBand. With Secure Boot, Crypto Enabled features, and a PCIe 5.0 x16 interface, it delivers exceptional speed and security, ideal for modern data centers and HPC environments.

Dual-Mode Connectivity

One standout feature of the MCX755106AS-HEAT is its dual-mode connectivity. It supports both 200Gb Ethernet and 200Gb InfiniBand, providing flexibility to users based on their specific network requirements. This dual-mode capability makes it suitable for diverse environments, from data centers to research institutions, where varying networking standards may be in use.

NVIDIA ConnectX-7

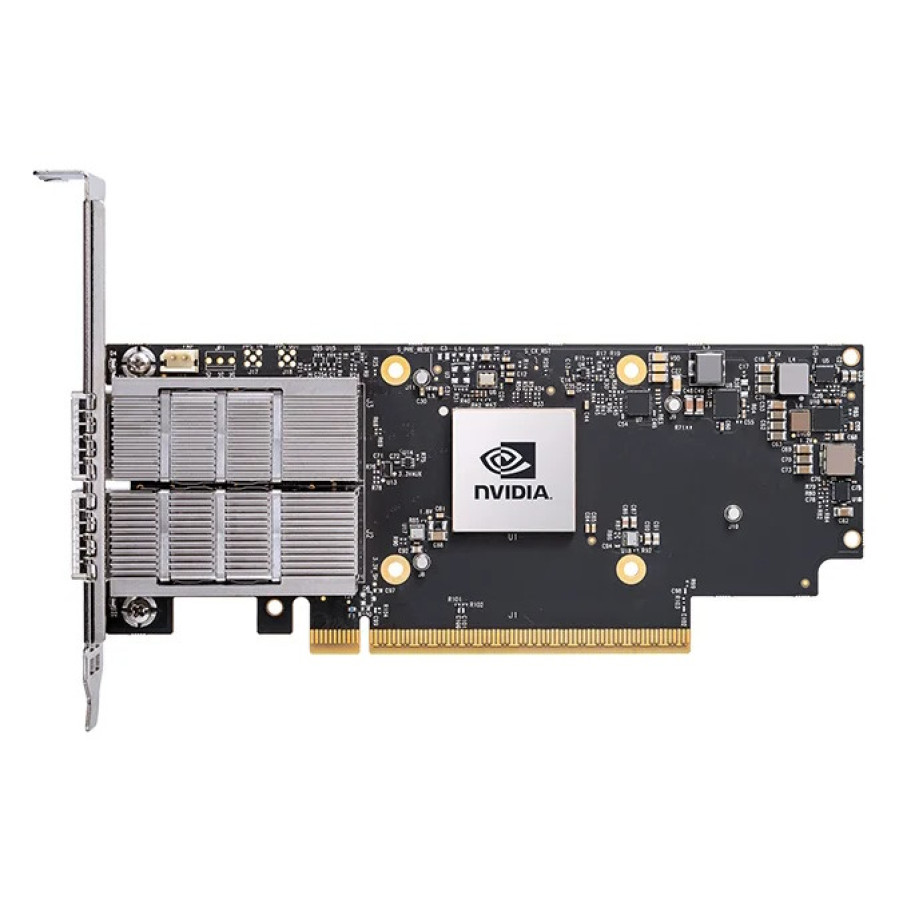

At the heart of this adapter card is the NVIDIA ConnectX-7, a renowned networking chip known for its performance and reliability. The ConnectX-7 is designed to deliver high bandwidth and low-latency connectivity, making it an ideal choice for data-intensive applications such as artificial intelligence, machine learning, and high-performance computing.

PCIe 5.0 x16 Interface

The MCX755106AS-HEAT operates on the PCIe 5.0 x16 interface, leveraging the latest advancements in PCI Express technology. This interface not only ensures high-speed data transfer but also enhances overall system performance by optimizing communication between the adapter card and the motherboard.

Versatile Networking Capabilities200GbE – Unleashing Gigabit Ethernet

With support for 200GbE, the MCX755106AS-HEAT enables users to harness the full potential of Gigabit Ethernet. This high data transfer rate is crucial for modern applications that demand rapid data exchange, such as large-scale data storage, video streaming, and cloud computing. The 200GbE capability positions the adapter card as a future-proof solution for enterprises and data centers striving to keep pace with evolving network demands.

NDR200 InfiniBand – Breaking Barriers

In addition to Gigabit Ethernet, the MCX755106AS-HEAT supports NDR200 InfiniBand, a non-blocking data rate of 200 Gbps. InfiniBand is widely recognized for its efficiency in handling high-performance computing workloads. The NDR200 support signifies the adapter card’s ability to cater to the most demanding applications, including scientific simulations, numerical modeling, and data analytics, where low latency and high throughput are paramount.

Secure Boot Enabled

Security is a top priority in today’s interconnected world, and the MCX755106AS-HEAT addresses this concern with its Secure Boot feature. Secure Boot is a security standard that ensures only authorized and digitally signed firmware and operating system boot loaders are executed during the system startup process. By incorporating Secure Boot, the adapter card enhances the integrity of the overall system, protecting against unauthorized code execution and potential security threats.

Crypto Enabled

The MCX755106AS-HEAT goes a step further in fortifying network security by being crypto-enabled. This means that the adapter card has built-in cryptographic capabilities, allowing it to handle encryption and decryption tasks seamlessly. In an era where data privacy is paramount, cryptographic features provide an additional layer of protection, ensuring that sensitive information remains confidential during transmission over the network.

NVIDIA® ConnectX®-7 Adapter

The NVIDIA® ConnectX®-7 family of remote direct-memory access (RDMA) network adapters supports InfiniBand and Ethernet protocols. It enables a wide range of smart, scalable, and feature-rich networking solutions that address traditional enterprise needs up to the world’s most-demanding AI, scientific computing, and hyperscale cloud data center workloads.

Accelerated Networking and Security

ConnectX-7 provides a broad set of software-defined, hardware-accelerated networking, storage, and security capabilities which enable organizations to modernize and secure their IT infrastructures. Moreover, ConnectX-7 empowers agile and high-performance solutions from edge to core data centers to clouds, all while enhancing network security and reducing the total cost of ownership.

Accelerate Data-Driven Scientific Computing

ConnectX-7 provides ultra-low latency, extreme throughput, and innovative NVIDIA In-Network Computing engines to deliver the acceleration, scalability, and feature-rich technology needed for today’s modern scientific computing workloads.

Key Features

• InfiniBand Interface
• InfiniBand Trade Association Spec 1.5 compliant
• RDMA, send/receive semantics
• 16 million input/output (IO) channels
• 256 to 4 kilobyte maximum transmission unit (MTU), 2Gb messages

Ethernet Interface

• Up to four network ports supporting NRZ, PAM4 (50G and 100G), in various configurations
• Up to 400Gb/s total bandwidth
• RDMA over converged Ethernet (RoCE)
