Versatile, Flexible and Intelligent Edge Computing

  • 3rd Gen Intel® Xeon Scalable processor Ice Lake Single Socket empowered
  • Advance system cooling supports up to 225W CPU TDP
  • 4x25GbE SFP28 LOM and up to 3 PCIe Gen4 expansion slots for advanced networking
  • TPM / QAT / PFR /GNSS optional
  • AC / DC Power redundancy and efficiency
  • NEBS / ORAN / OTII compliant

                            Flexible and Scalable Configurations

                                                                                                                                                                                                                                                                                      Expansion SKU


                                                                                                                                                                                                                                                                                                         Storage SKU

Enhanced Security

  • Chassis intrusion triggered when top cover removed while AC/DC on, to alter and log any possible breach to your QCT servers.

Easy Management with Orqestra

  • Secure and dynamic data administration of data center resources with Orqestra
  • Monitor up to 5000 devices per QST (QCT Service Tool).

Tailor-Made for 5G Telco and MEC Edge Servers

Open RAN transforms the architecture of mobile networks by bringing NFVi cloud, AI inference and optimized management into the radio access networks, enabling unlimited orchestration possibilities with future new applications and eventually assembling the ultimate 5G world.

S3IS|EGX63IS-1U is the product line QCT builds for realizing the Open RAN in different scenarios, including Centralized RAN and Distributed RAN. The server design is tailor-made for vRAN workloads with O-RAN function split option 7-2, advanced time synchronization and virtualization.

The S3IS is a 3rd Gen Intel® Xeon® Scalable Processor Single Socket based short depth MEC server. High Performance, I/O expandability and power efficiency provides best-in-class open platform for 5G Open RAN, private 5G networks, and a broad range of 5G MEC applications. S3IS design is driven by ORAN and OTII, also meets NEBS level 3 and Earthquake zone 4.


Processor Family

Intel®Xeon® Processor Scalable Family

Processor Type

Intel®Xeon® Processor Scalable Family

Max. TDP Support


Number of Processors

1 Processors

Form Factor



W x H x D (inch)

17.6 x 1.7 x 16.5

W x H x D (mm)

447.8 x 42.8 x 400


SKU - #1

Expansion SKU

(2) NVME / SATA3 M.2 2280

SKU - #2

Storage SKU

(2) NVME / SATA3 M.2 2280

(2) 2.5" SATA3 SSD


Total Slots



Up to 512GB of memory for RDIMM/LRDIMM

Memory Type



Memory Size

16G, 32G, 64G, 128G RDIMM/LRDIMM

Expansion Slot

SKU - #1

Expansion SKU

(1) FHHL PCIe Gen4 x16

(2) FHFL PCIe Gen4 x16

SKU - #2

Storage SKU

(2) FHFL PCIe Gen4 x16

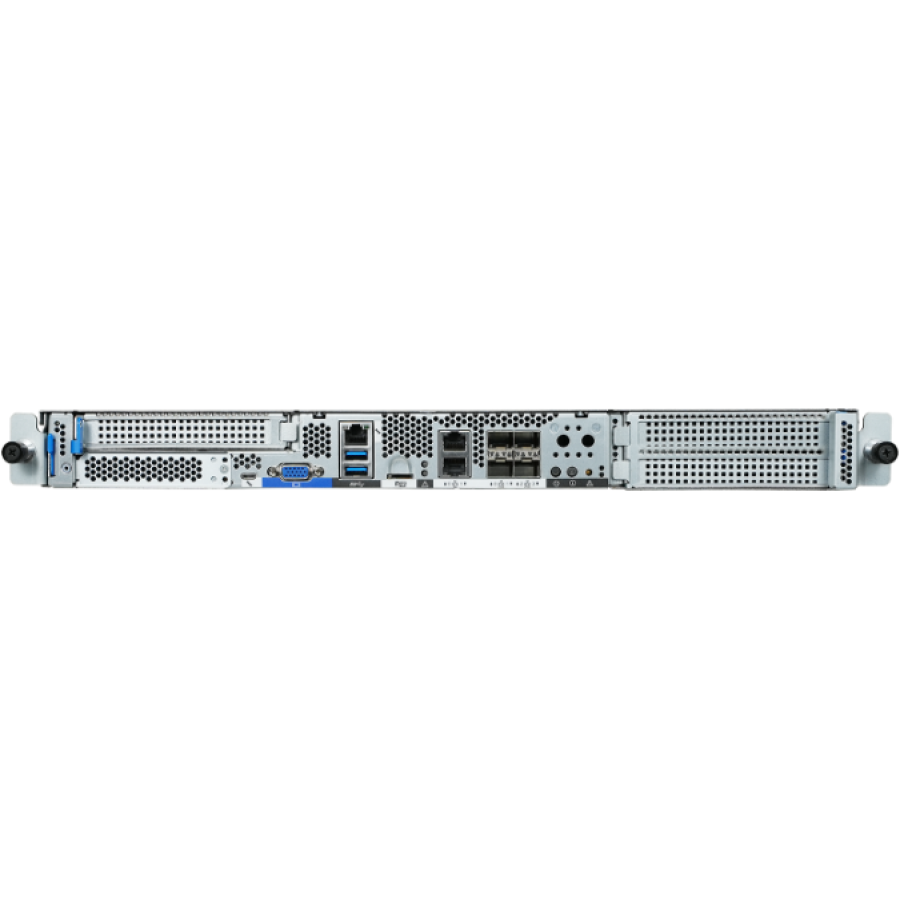

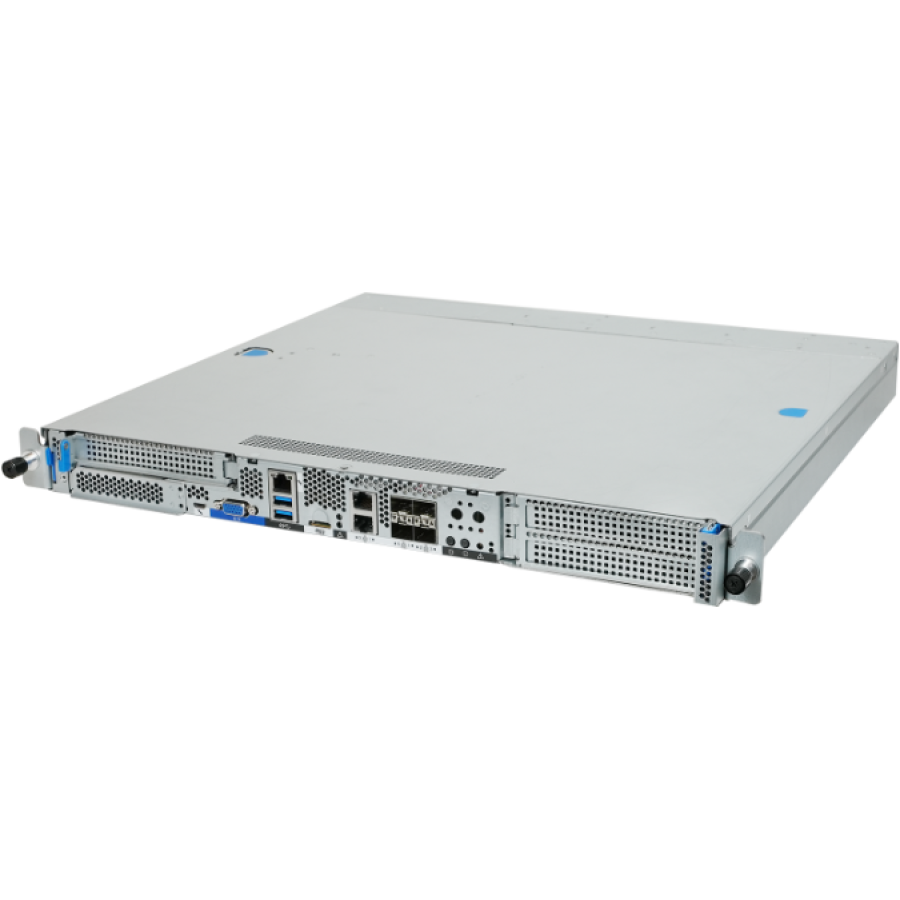

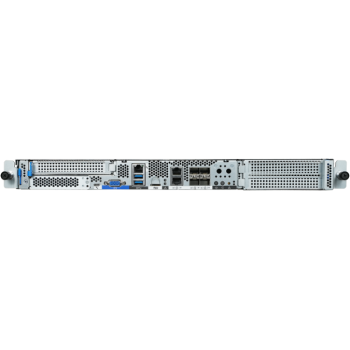

Front I/O

(2) USB 3.0 type-A ports

(1) VGA (via RunBMC AST2500)

(2) HDD LED on each HDD tray (ACT & LOC/ERR LED)

(1) ID Button/ LED

(1) Power Button/ LED

(1) PFR Status LED

(1) Status LED

(1) RJ45 Management Port

(2) LAN Ports 1GbE RJ45

(4) 25GbE SFP28

(1) Micro SD

(1) COM port for serial port (micro-USB Type-B)

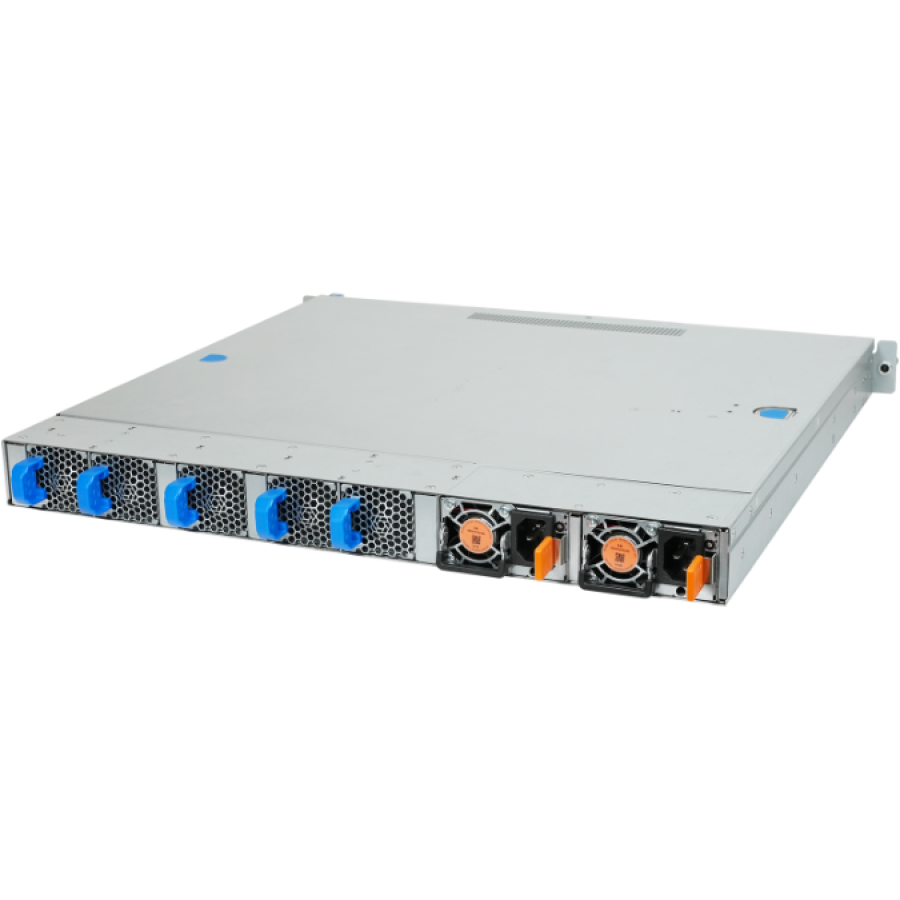

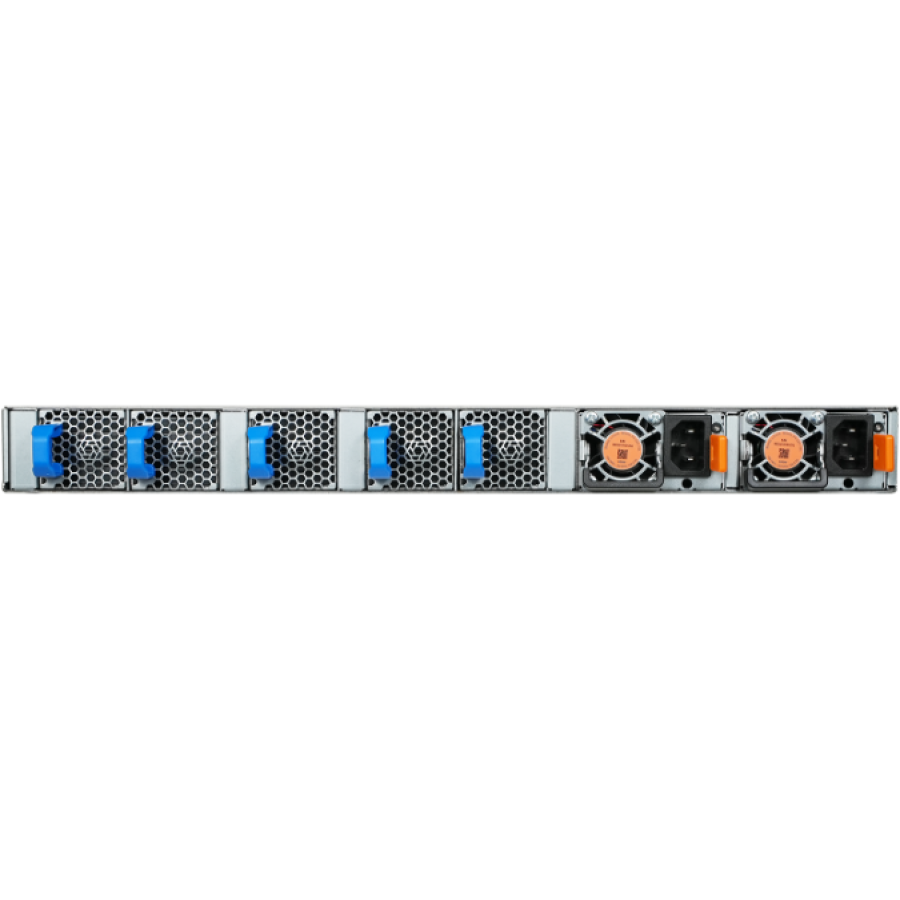

Power Supply

800W 73.5mm Platinum AC/DC redundant power supplies


(5) 40x28mm single rotor fans (N+1 redundant)

System Management

IPMI v2.0 Compliance, Redfish v1.8 Compliance

QCT Orquestra v1.1 (Optional)

Operating Environment

Operating temperature: -5°C to 55°C

Non-operating temperature: -40°C to 70°C

Operating relative humidity: 5% to 85%RH

Non-operating relative humidity: 10% to 95%RH


SPI 2.0

Weight (Max. Configuration)

10 KG

Title Version Date Size
HS Product Catalog 1 01-07-2021 6371KB


Carrier-Grade Multi-Access Edge Computing (MEC) Server

  • 3rd Gen Intel® Xeon Scalable processor Ice Lake Single Socket empowered
  • Front access design for centralized/distributed Radio Access Network (RAN)
  • Distinguished, flexible I/O design supports up to three PCIe Gen4 expansion slots
  • 400mm ultra-short depth for footprint minimization
  • NEBS Level 3 and ORAN/OTII compliant
  • Thermal enhancements for -5~55’C critical environment

  • $AUD $6,762.00

    *RRP Pricing*

    To View Channel Discounts Please Login
