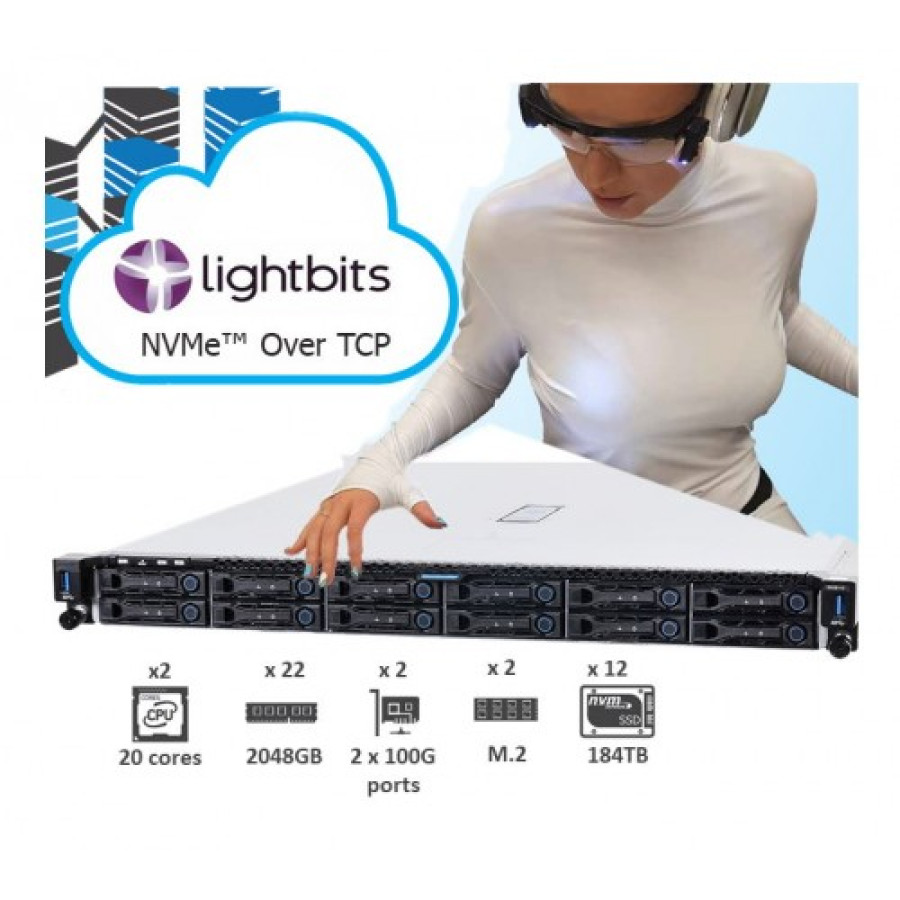

Lightbits HS Appliance

  • Disaggregated NVMe over TCP Block Storage
  • 184TB | 2.5M IOPS (4k read) in 1RU
  • Deploy at the edge
  • Hyperscale NVMe cloud storage
  • Scale 2.2PB NVMe clusters in 12RU
  • Assures data availability
  • Protects against data loss
  • 3Y licencing cost included
  • $AUD $183,280.43

    *RRP Pricing*

    To View Channel Discounts Please Login

  • Ex Tax: $183,280.43

Lightbits HS Appliance

LightOS® HS Appliance Hyperscalers together with the Lightbits team, who were key contributors to the NVMe standard & among the originators of NVMe over Fabrics (NVMe-oF), bring you

LightOS® HS Appliance

Hyperscalers together with the Lightbits team, who were key contributors to the NVMe standard & among the originators of NVMe over Fabrics (NVMe-oF), bring you LightOS® HS: World’s densest NVMe ™ over TCP storage appliance extensively tested and validated on the S5B 1U storage server.

Preloaded LightOS® Licence 3Y Support

The LightOS® HS appliance enables our partners inc. service providers & OEM with everything they need to deploy high performance NVMe Block storage as a SAN logical volume on demand and ‘out of the box.’ The LightOS® HS appliance come preloaded with a 3Y perpetual licence pack with full support from LightOS

Ideal for Tier 0 and Tier 1 Workloads

The LightOS® HS appliance unlocks the full potential of disaggregated storage making it ideal for Tier 1 and 0 workloads: Cassandra, Mongo DB, MySQL, VM, OpenStack, Kubernetes containers and AI

Highest Quality Levels

Manufactured using only the highest quality components and commodities the LightOS® HS appliance offers higher: Storage capacity, Mean Time Between Failure MTBF, endurance & performance.


To visit the Education Page click here.

Hyperscale economics

LightOS® HS appliance is readily available via our partners under either  buy, rent, lease models

Watch the Video here



About Lightbits

Lightbits Labs, founded in 2016, is re-inventing modern cloud infrastructure on a global scale. The company’s mission is to re-invent the way storage and networking are conducted in cloud data centers. Lightbits is disaggregating storage and compute to improve clients’ infrastructure flexibility and efficiency at scale.

Processor
Processor Type
Intel®Xeon® Processor Scalable Family
(refer to the CCL)
Max. TDP Support
165W
Number of Processors
2 Processors
Internal Interconnect
9.6/10.4 GT/s
Form Factor
Form Factor
1U
Dimensions
W x H x D (inch)
17.3 x 1.7 x 30.7
W x H x D (mm)
440 x 43.2 x 780
Chipset
Chipset
Intel® C621
Intel® C624
Storage
Default Configuration
NVMe support
2.5" Hot-plug
3.5" Hot-plug
SKU - #1
[All Flash SKU]:

(12) 2.5" hot-plug SATA/ NVMe SSD
SKU - #2
[SFF Tiered SKU]:

(8) 2.5" hot-plug SATA/SAS drives + (4) 2.5" hot-plug NVMe/SATA/SAS drives
SKU - #3
[Hybrid SKU]:

Option 1
(4) 3.5"/2.5" hot-plug SATA/SAS drives, (4) 9mm NVMe/SATA/SAS drives (optional)

Option 2
(4) 3.5"/2.5" hot-plug SATA/SAS drives, (4) 9mm SATA/SAS drives (optional)
Memory
Total Slots
24
Capacity
Up to 3TB (128Gx24) of memory for RDIMM/LRDIMM
Up to 7.68TB
(512G*12 DCPMM + 128G*12 RDIMM/LRDIMM)
Memory Type
2666 MHz DDR4 RDIMM
2933Mhz DDR4 RDIMM/LRDIMM
Up to (12) 2666Mhz Intel® Optane™ DC Persistent Memory (DCPMM)
Memory Size
64GB, 32GB, 16GB, 8GB RDIMM
16G, 32G, 64G 2933Mhz RDIMM/LRDIMM
128G, 256G, 512G Intel DCPMM
(Refer to CCL)
Expansion Slot
SKU - #1
[All Flash SKU]

(1) PCIe Gen3 x16 OCP 2.0 mezzanine slot or PHY card
(1) PCIe Gen3 x16 LP MD-2
(1) PCIe Gen3 x8 FHHL
SKU - #2
Option 1 (3PCIe)
(1) PCIe Gen3 x16 SAS mezzanine slot
(1) PCIe Gen3 x16 OCP 2.0 mezzanine slot or PHY card
(1) PCIe Gen3 x16 LP MD-2
(2) PCIe Gen3 x 8 LP MD-2
Option 2 (2PCIe)
(1) PCIe Gen3 x16 SAS mezzanine slot
(1) PCIe Gen3 x16 OCP 2.0 mezzanine slot or PHY card
(1) PCIe Gen3 x 8 FHHL
(1) PCIe Gen3 x16 LP MD-2
SKU - #3
Option 1 (3PCIe)
(1) PCIe Gen3 x16 SAS mezzanine slot
(1) PCIe Gen3 x16 OCP 2.0 mezzanine slot or PHY card
(1) PCIe Gen3 x16 LP MD-2
(2) PCIe Gen3 x 8 LP MD-2
Option 2 (2PCIe)
(1) PCIe Gen3 x16 SAS mezzanine slot
(1) PCIe Gen3 x16 OCP 2.0 mezzanine slot or PHY card
(1) PCIe Gen3 x16 FHHL
(1) PCIe Gen3 x16 LP MD-2
Network Controller
LOM
Dedicated (1) GbE management port
Optional NIC
Quanta Intel® X527 10G SFP+ dual/quad-port OCP PHY mezzanine or
Quanta Intel® X557 10G RJ45 dual/quad-port OCP PHY mezzanine or
Quanta Intel® I357 1G RJ45 dual/quad-port OCP PHY mezzanine or
(more options refer to the CCL)
Front I/O
Front I/O
(2) USB 3.0 ports
Power/ID/Reset Buttons
Power/ID/Status LEDs
Storage Controller
Onboard
Intel® 621/ 624:
14x SATA 6Gb/s ports
SATA RAID 0, 1, 10
Optional Controller
Quanta LSI® 3216 12Gb/s SAS mezzanine
Quanta LSI® 3516 12Gb/s SAS mezzanine (RAID 0,1,5,6,10,50,60)
Intel® VROC Upgrade Module for PCIe SSD
(2) PCIe M.2 support with M.2 adapter for boot optimization (option)
(2) SATA M.2 support with M.2 adapter for boot optimization (option)
Power Supply
Power Supply
(1+1) High efficiency redundant hot-plug Platinum/Titanium 500W/800W* PSU
(detailed PSU options please refer to "ordering info" or "CCL")
Onboard Storage
Onboard Storage
(2) SATADOM (option)
Fan
Fan
(8) dual rotor fans (15+1 redundant)
Video
Video
Integrated ASPEED AST2500 8MB DDR4 video memory
System Management
System Management
Redfish v1.1
IPMI v2.0 Compliant, on board "KVM over IP" support
QCT System Manager (QSM) v1.8 (Optional)
Rear I/O
Rear I/O
(2) USB 3.0 ports
(1) VGA port
(1) RS232 serial port
(1) GbE RJ45 management port
(1) ID LED
(1) MicroSD slot
Operating Environment
Operating Environment
Operating temperature: 5°C to 40°C (can support 45°C under certain situation)
Non-operating temperature: -40°C to 70°C
Operating relative humidity: 20% to 85%RH
Non-operating relative humidity: 10% to 95%RH
TPM
TPM
TPM 1.2/2.0 SPI module
Weight (Max. Configuration)
Weight (Max. Configuration)
31KG


Datasheet 2
Title Version Date Size
Lightbits Datasheet v1 26/5/20 795
LightBits Whitepaper v1 26/5/20 865
