Cloud Designer

Channel partners - distribution of Hyperscale Cloud-Datacenter solutions (OCP compliant) are available via HyperScalers. Register your opportunity now.

Channel partners - distribution of Hyperscale Cloud-Datacenter solutions (OCP compliant) are available via HyperScalers. Register your opportunity now.

Hyperscale Cloud-Datacenter(s) are ideal for Cloud service providers including: Commercial providers, IT-Departments, Telco, Co-Lo, Governments+ needing to deliver:

  • Infrastructure as a Service (IaaS)
  • Platform as a Service (PaaS); and
  • Hyperscale Cloud-Datacenter(s) as a Service (HCDaaS)

-in the most effective, most secure, and in the most cost-efficient means possible.


Selecting IT's Cloud-Path of Least Resistance

The current IT environment is plagued with inefficiencies characterized by low asset utilization, a fragmented demand for resources, duplicative systems, unmanageable environments and long procurement lead times. Cloud computing has the potential to play a major part in addressing these inefficiencies and improving service delivery. But, Cloud is changing at the speed of light. Chief Technology Officers and Chief Information Officers say Public Cloud adoption presents serious business-limitations around: loss of control, security and data sovereignty, latency and cost.

When asked about the barriers and challenges faced to deliver internal Cloud services, CTOs and CIOs identify: project-risk and complexities due to a lack of standardisation, risk of vendor lock-in, lengthy lead times as well as a high capex.

When we asked George Cvetanovski (Founder and CEO of HyperScalers) on the state of the industry, He said "If Cloud-datacenters were like cars, each of us would be heavily reliant on a unique vehicle, providing us with insight into the root problems of custom, one-time engineered outcomes, be it from a build-quality and safety perspective, a performance and efficiency perspective or an economies of scale and cost savings perspective."

George continued "Information Technology's core problem, I'm talking about the problem of complexity is being solved simply through standardisation of best practices and through economies of scale. Conventional datacenter hardware cannot keep up with the growing density and large capacity requirements of datacenters that demand more efficient and simplified hardware design. The decision to partner with Quanta QCT- the world's largest Original Design Manufacturer (ODM), and world's largest provider of Open Compute Project (OCP)-compliant hardware was a no-brainer. QCT's pioneering ideas and engineering excellence help meet HyperScalers' and its channel-partners' and their clients' needs."

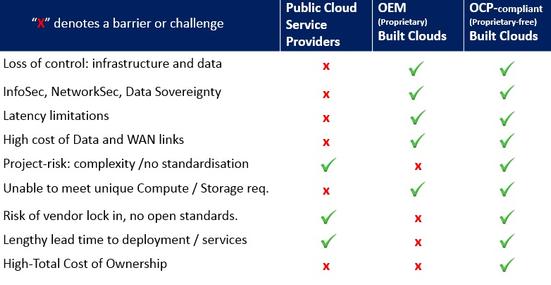

CIOs and CTOs, in their quest to find the economics and newfound user benefits of Cloud Computing essentially face three possible alternatives:

  • 3rd party Public Cloud service providers;
  • OEM (proprietary) Built Clouds - on premise or off-premise (Co-Lo); and
  • OCP-compliant (propriatery-free) Built Clouds on-premise or off-premise (Co-Lo)

IT's Cloud-Path of Least Resistance = OCP Compliant (proprietry-free) Built Cloud(s). OEM (proprietary) built Clouds came in second followed by Public Cloud service providers.

The matrix's finding affirms CIOs' and CTOs' need and preference for delivering their internal customers and even their external customers, the full suite of Amazon-like Cloud services only under their full control and without the limitations of the Public Cloud model including: security and data-sovereignty, latency and cost.

The matrix also affirms CIOs' and CTOs' need and preference for delivering and operating standard Cloud capacity - vanity free of the expensive OEM brand-badges, free of the proprietary limitations and free of proprietary lock-ins.

About: Open Compute Project
OCP was started by Facebook three years ago with a pretty big goal: to build one of the most efficient computing infrastructures at the lowest possible cost. The result is a data center full of vanity free servers which is 38% more efficient and 24% less expensive to build and run than other state-of-the-art datacenters.


About: Quanta QCT
World's largest Original Design Manufacturer (ODM), a $40B company with over 100K employees. QCT sells Cloud hardware that delivers hyperscale performance, efficiency and advanced engineering, with flexible product configuration, rack integration, performance tuning and engineering consulting services to help customers deploy optimised Cloud solutions for their unique Cloud workloads

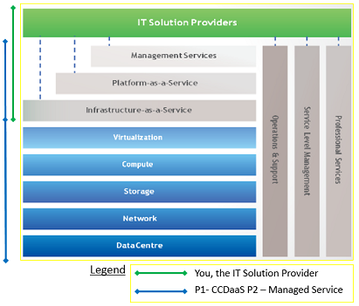

Delivering IT's Cloud-Path of Least Resistance
i.e. You, the Cloud / IT Solution Provider, Delivers:

IaaS - Infrastructure as a Service– Provide internal and external customers a seamless means to provision virtual: servers, network and storage resources including full control to manage their Operating System(s) and Apps.

PaaS - Platform as a Service– Provide internal and external customers a seamless means to push their applications into the Cloud whilst the underlying OS platform is managed by the Solution provider

DBaaS – Data Base as a Service - Enable your customers to provision a highly available and compliant DB with a few clicks.

HCDaaS – Hyperscale Cloud-Datacenter as a Service- is ideal for Channel Partners including Co-Lo operators needing to deliver their clients, the complete OCP-compliant stack (capex or opex-based cost model) enabling them to deliver their internal customers or even their external customers the full suite of Amazon-like Cloud services: IaaS, PaaS and DBaaS under their full control or as a managed service.

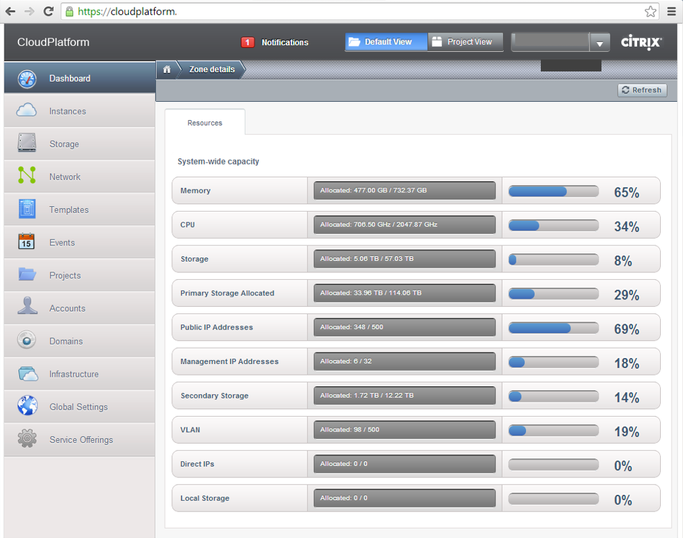

Open Software - Cloud Management Platform (Orchestration)

Get-price / Enquire

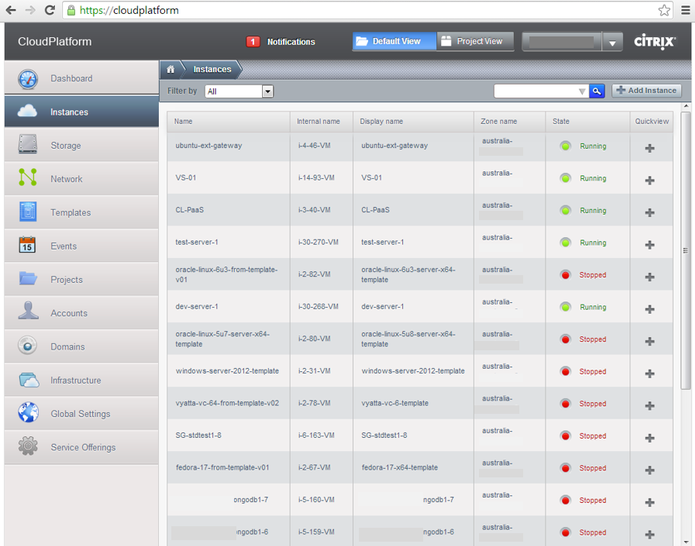

Open Software - Orchestration

  • Provides a friendly Web-based UI for managing Private/Public Clouds
  • Provides a native API
  • Amazon S3/EC2 compatible API
  • Manages storage for instances running on the hypervisors (primary), templates, snapshots, and ISO images (secondary)
  • Orchestrates network services from the data link layer (L2) to some application layer (L7) services, such as DHCP, NAT, firewall, VPN
  • Accounting of network, compute, and storage resources
  • Multi-tenancy account management with  user separation management
  •  Multi-tenancyusage / billing

Open Software - Cloud Management Platform (Orchestration)

Get-price / Enquire

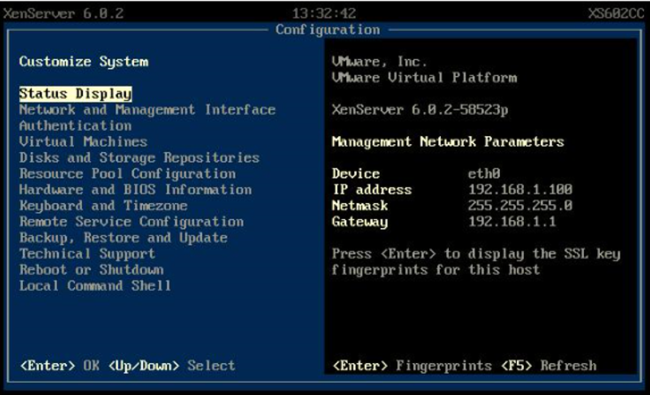

Open Software - Virtualisation

  • Eliminates the need for planned downtime by enabling active virtual machines to be moved to a new host with no application outages or downtime.
  • Move live running VM and their associated virtual disk image within and across resource pools leveraging local and shared storage.
  • Deliver high availability by automatically restarting virtual machines if a failure occurs at the VM, hypervisor or server level.
  • Reduce costs and improve application performance and protection by sharing unused server memory between VMs on the host server.
  • Create snapshots of virtual machines to capture disk and metadata settings for backups, archives and configuration changes.
  • Provides site-to-site DR planning and services

Open Software - Virtualisation (Hypervisors)

Get-price / Enquire

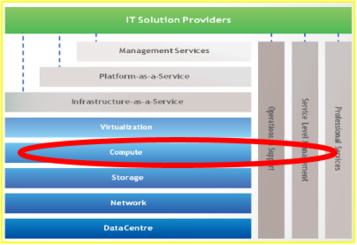

Open Hardware - Compute

Channel partners - distribution of Rackgo X is available via HyperScalers. Register your opportunity now.

Rackgo X300, is a compute-intensive solution designed for the most computing-intensive applications. With a total rack power cap of 25K watts, you can install up to 16 units of F03A servers that are designed for optimized performance and space. QCT's X300 features up to 64 independent 2-socket half width servers that are capable of running complex workloads using highly scalable memory, I/O capacity and fiber network options. Datacenter operators are welcome to choose among X300, X500, and X700, or deploy them all in the same environment to achieve a balanced workload according to their demand.

Specifications

  • Dimension (LxWxH) 1066mm x 600mm x 2200mm
  • Weight- 1052kg
  • Quantity of F03A Node- 64
  • Quantity of JBR JBOD storage- 0
  • Quantity of T3048-LY2 switch- 4
  • Quantity of CPU socket- 128
  • Quantity of JBOD HDD- 0
  • Power Requirement- 25KW with 2 power shelves
  • All front rack accessible
  • Targeted Applications: Compute-intensive workloads and Public and Private Clouds

Highly customizable spec - Opt 1

  • CPU Cores - 768 (128x E5 2620v2 Intel 2.2GHZ)
  • RAM-8192GB (1024x 8G DDR3L 1600)
  • SSD Storage - 15,360 GB (128 x 120 GB SSD OS)
  • Network - 192 x 10GB SFP
  • Network - 16 x 40G QSFP

Feature highlights

  • High desnisty 25Kwatt rack
  • 64 independent compute nodes
  • 32 teraflops in single rack

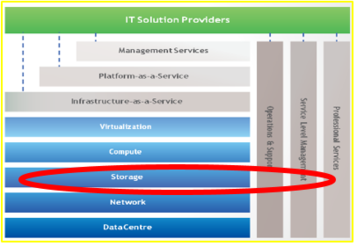

Open Hardware - Storage

Channel partners - distribution of Rackgo X is available via HyperScalers. Register your opportunity now.

Rackgo X500 is an optimized Quanta Rack solution for datacenters that have been challenged with storing an ever-growing volume of data in a sufficient fashion. By installing 15 of QCT's dual-socket compute nodes and patent-designed storage unit (JBR), the rack provides the most reliable, scalable object-storage capacity of its kind. With 15x JBRs, the rack has amazing 420x 3.5" hotswappable drive trays that help ensure your data integrity and capacity needs at the same time. JBR also offers multiple zoning options, giving datacenters more development flexibility. Each Intel-based dual socket motherboard can deliver up to 20Gbps of bandwidth for the data transfer without bottleneck. X500 provides a reliable storage system for more permanent, static data. Target application and usage include raw images, photo storage, email storage and backup archiving. X500 is a great reference design for any enterprise or Public and Private Cloud datacenter. Datacenter operators are welcome to choose among X300, X500, and X700, or deploy them all in the same environment to achieve a balanced workload according to their demand

Specifications

  • Dimension (LxWxH) 1066mm x 600mm x 2200mm
  • Weight- 1108kg
  • Quantity of F03A Node- 14
  • Quantity of JBR JBOD storage- 14
  • Quantity of T3048-LY2 switch- 2
  • Quantity of CPU socket- 28
  • Quantity of JBOD HDD- 392
  • Power Requirement- 12.5KW with 1 power shelf
  • All front rack accessible
  • Targeted Applications: Open Stack, storage and bandwidth-intensive workloads  and Public and Private Clouds

Highly customizable spec - Opt 1

  • CPU Cores - 168 (28x E5 2620v2 Intel 2.2GHZ)
  • RAM- 1792GB (224 x 8G DDR3L 1600)
  • SSD Storage - 3,360 GB (18 x 120 GB SSD OS)
  • Storage - 1.68PB (420 x 4TB SAS)
  • Network - 96 x 10GB SFP
  • Network - 8 x 40G QSFP

Feature highlights

  • Great for Open Stack and Public and Private Clouds
  • 15 independent compute nodes
  • 420 x 3.5" HDD tray for total of 1.68PB
  • CPU to external HDD - 1:28

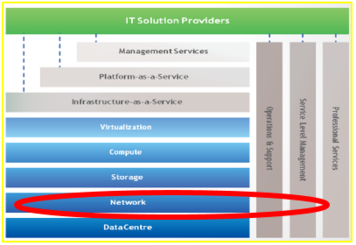

Open Hardware - Networks

Channel partners - distribution of QCT network, switches and swRackgo X is available via HyperScalers. Register your opportunity now.

The QuantaMesh T3048-LY2 network switch is pre-converged in every Rackgo X model which can be managed through an industry standard command-line Interface (CLI) which reduces training and operating costs. A user friendly Web GUI is provided via a standard Web browser for switch management. The QuantaMesh T3048-LY2 also supports Simple Network Management Protocol (SNMP) both from standard MIB and private MIB for easy configuration, monitoring, and management by the network administrator, remotely. The Auto-Installation feature implemented in the QuantaMesh T3048-LY2 helps centralized management to simplify deployment of a truly plug-and-play experience. With the evolution from IPv4 to IPv6, the QuantaMesh T3048-LY2 is a IPv6 integrated management device.

Rackgo X700is designed with a balanced CPU to Harddisk capacity ratio. 12 x JBRs give each of the 24 dual socket compute nodes an additional 14 x 3.5" harddisk. This design is suitable for OpenStack & Hadoop compute applications for public and private clouds. Datacenter operators are welcome to choose among X300,X500, and X700, or deploy them all in the same environment to achieve a balanced workload according to their demand.

Specifications

  • Dimension (LxWxH) 1066mm x 600mm x 2200mm
  • Weight- 1086kg
  • Quantity of F03A Node- 24
  • Quantity of JBR JBOD storage- 12
  • Quantity of T3048-LY2 switch- 2
  • Quantity of CPU socket- 48
  • Quantity of JBOD HDD- 336
  • Power Requirement- 12.5KW with 1 power shef
  • All front rack accessible
  • Targeted Applications: Virtualization, object storage application, Hadoop and more balanced workloads

Highly customizable spec - Opt 1

  • CPU Cores - 288 (48x E5 2620v2 Intel 2.2GHZ)
  • RAM- 3072GB (384 x 8G DDR3L 1600)
  • SSD Storage - 5,760 GB (48 x 120 GB SSD OS)
  • Storage -  1.34PB (336 x 4TB SAS)
  • Network - 96 x 10GB SFP
  • Network - 8 x 40G QSFP

Feature highlights

  • Great for: VM, Object Storage Application and Public and Private Clouds
  • (24) independent Compute Nodes
  • 336 x 3.5" HDD tray for 1.34PB
  • CPU to external HDD - 1:14

Like the LEGO concept, Rackgo X provides modular units to be built on each other. The Quanta Rackgo X includes two server options, one microserver, one JBOD storage and QuantaMesh network switches as the basic building blocks. Customers can choose components to fit the specific needs of their datacenter applications.

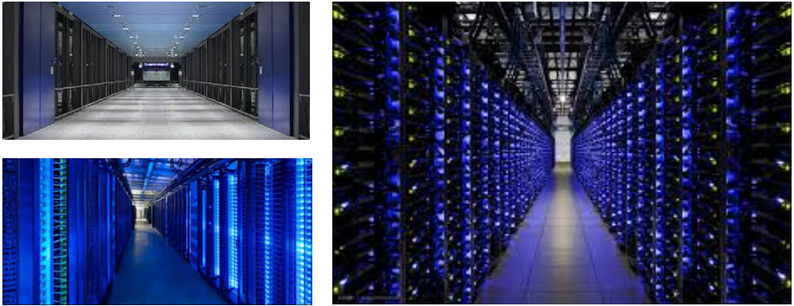

Open Facilities - On Any Datacenter Floor

Gray-space infrastructure

  • HV-LV power transformation
  • Cogeneration, trigeneration, solar-generation and DRUPS
  • Chilled water primary / secondary cooling systems and DX cooling systems
  • BMS

White-space infrastructure

  • Containerised, Modular and structural infrastructure, raised floor or not
  • Uninterruptable Power Supply and Power Distribution
  • IRC and RDC cooling systems with Cooling Distribution Systems
  • HAC and CAC systems
  • DCIM
