Leopard meets Rack Scale Design
- Ultra-Converged Architecture with Computer & Embedded Switch
- Uniform Scale-out Building Block
- RSD/OCP compliant 21” chassis
- Leopard meets Rack Scale Design

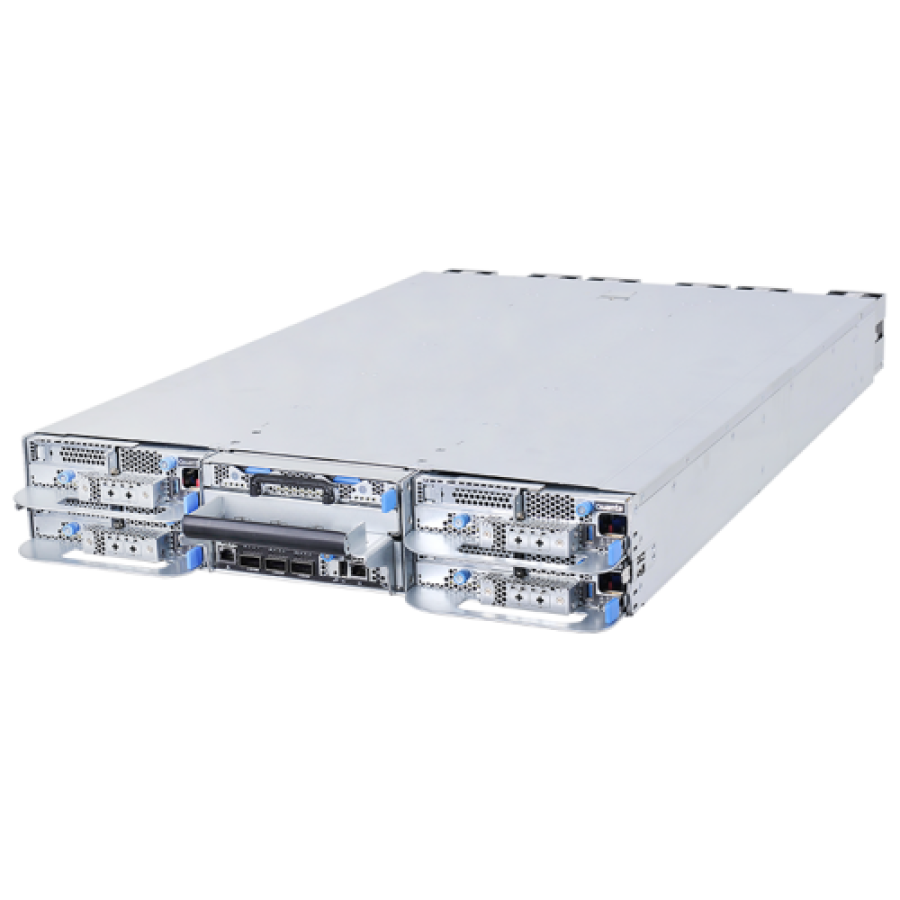

High Density 2U4N design for maximum performance
Rackgo X Leopard Snow is designed for the highest compute density, offering four nodes in a 2 OU space. Each node can accommodate SATADOMs for the operating system and up to two extra hot-swappable SSD/HDDs for cache or data storage. The RAID-ready configuration of Rackgo X Leopard Snow preserves data integrity and avoids data corruption.
Uniform Scale-out Building Block
Rackgo X Leopard Snow enables scale out on compute, storage and switch. With integrated Intel® Red Rock Canyon (RRC) on the central node, Rackgo X Leopard Snow supports three 100G LAN ports. RRC is essentially switch silicon that aggregates I/O from all four nodes in a server sled and enables interconnections among the four nodes.
Vanity Free Design for better MTBF
By centralizing power supplies in the rack and removing unnecessary components from the system, the Rackgo X Leopard Snow enhances system MTBF by 58% compared to other conventional 2U4N systems on the market. This will avoid system downtime caused by component failure and minimize maintenance efforts.
|
Processor |
|
|
Processor Type |
Intel® Xeon® processor E5-2600 v3 product family Intel® Xeon® processor E5-2600 v4 product family |
|
Max. TDP Support |
135W or 145W* |
|
Number of Processors |
2 |
|
Internal Interconnect |
6.4 / 8.0 / 9.6 GT/s |
|
L3 Cache |
6.4 / 8.0 / 9.6 GT/s |
|
Form Factor |
|
|
Form Factor |
4 Nodes 2OU (Open Rack) Rackmount |
|
Storage |
|
|
Storage |
Drive Bay |
|
Dimensions |
|
|
W x H x D (inch) |
21.1 x 3.5 x 34.6 |
|
W x H x D (mm) |
536 x 89 x 880 |
|
Chipset |
|
|
Chipset |
Intel® C610 |
|
Expansion Slot |
|
|
Expansion Slot |
PCIe Slot Mezzanine Slot |
|
Memory |
|
|
Total Slots |
16 |
|
Capacity |
Up to 256GB RDIMM UP to 512GB LRDIMM |
|
Memory Type |
2133 MHz DDR4 RDIMM 2133 MHz DDR4 LRDIMM |
|
Memory Size |
16GB/8GB RDIMM 32GB LRDIMM |
|
Front I/O |
|
|
Front I/O |
(1) USB port per node (1) Power button (1) Reset button |
|
Storage Controller |
|
|
Onboard |
Intel® C610: |
|
Onboard Storage |
|
|
Onboard Storage |
Option 1 : NGFF |
|

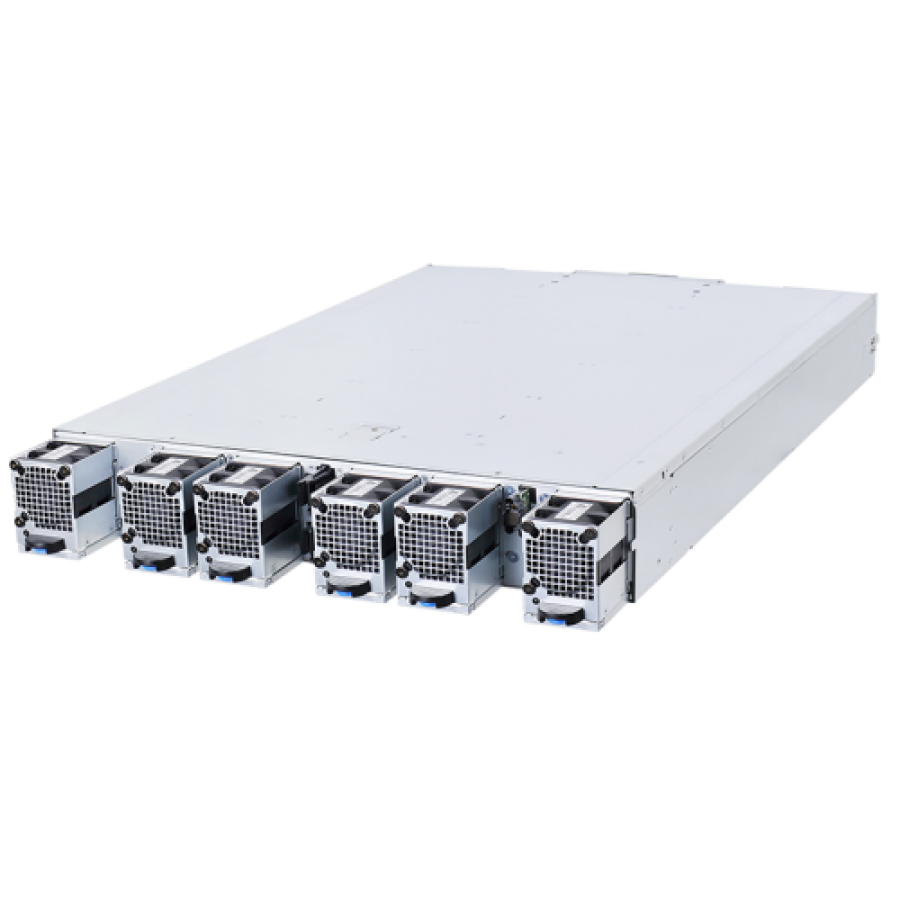

Fan |
|
|
Fan |
(6) hot-plug system fans |
|
Video |
|
|
Video |
Integrated AST2400 with 8MB DDR3 video memory |
|
Weight (Max. Configuration) |
|
|
Weight (Max. Configuration) |
45kg (99lb) |
|
Network Controller |
|
|
Network Controller |
LOM |
|
Rack Compatible |
|
|
Rack Compatible |
Open Rack v2 |
| Title | Version | Date | Size | |
|---|---|---|---|---|
| QCT Product Portfolio | 1 | 14/4/2019 | 7.32 MB |  |
| Title | Version | Date | Size | |
|---|---|---|---|---|
| Safety Information_EN for UL | 295 KB | 598 kb | |
RACKGO X-RSD LEOPARD SNOW
-
$AUD $4,944.50
*RRP Pricing*To View Channel Discounts Please Login
