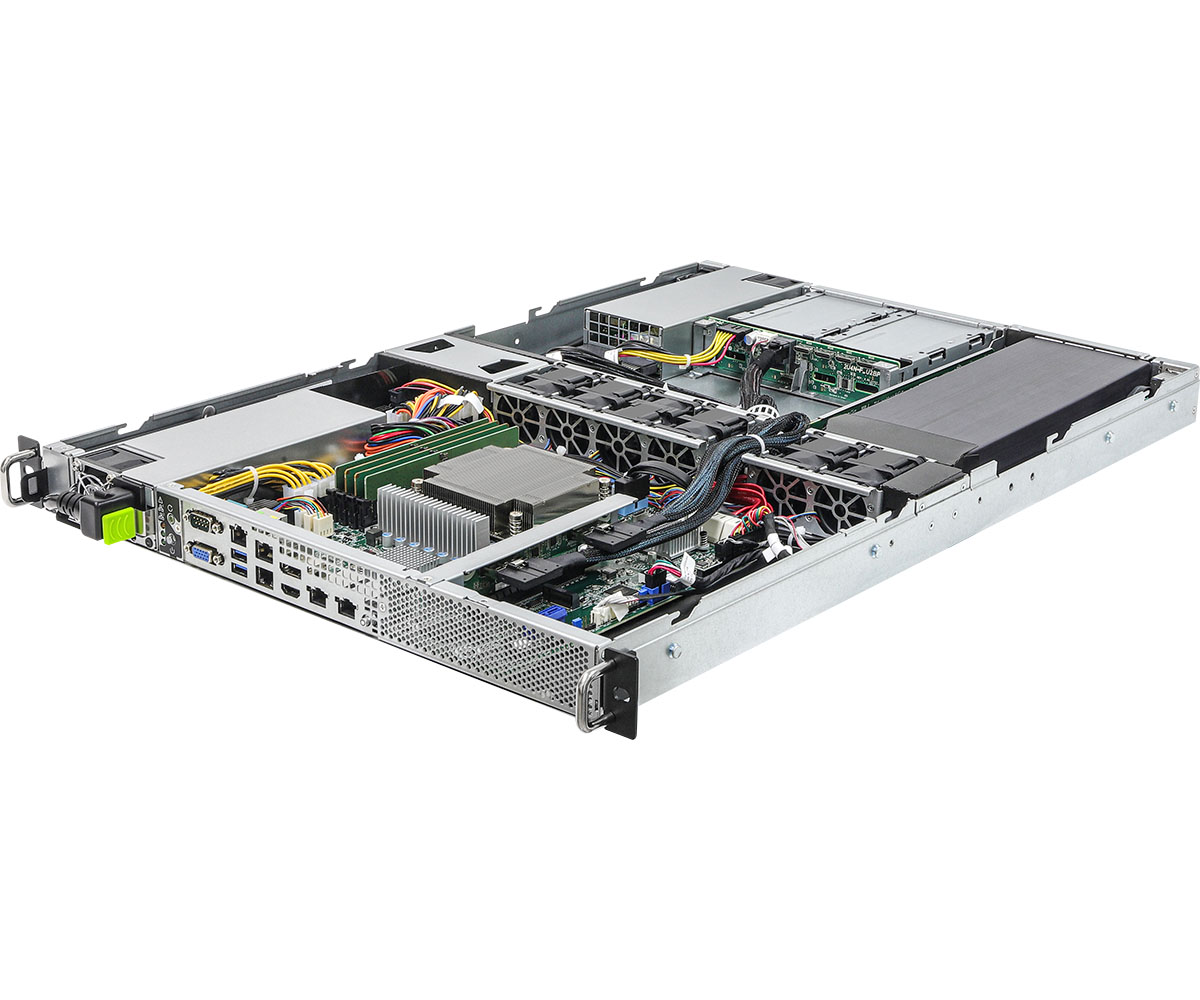

HFT1 | 1U1G-W680/2L2T

The HFT1 is a 1U 1S 4-drive bay high performance server designed for the most demanding workloads including: - High Frequency Trading HFT - Edge applications  - Artificial Intelligence  - Machine Learning&n

The HFT1 is a 1U 1S 4-drive bay high performance server designed for the most demanding workloads including:

- High Frequency Trading HFT

- Edge applications

- Artificial Intelligence

- Machine Learning

- Large Language Models

SPECIFICATIONS

System
Form Factor	1U Rackmount
Dimensions	650.0 x 438.0 x 43.5 mm (25.60'' x 17.2'' x 1.7'')
Support MB	W680D4U-2L2T/G5

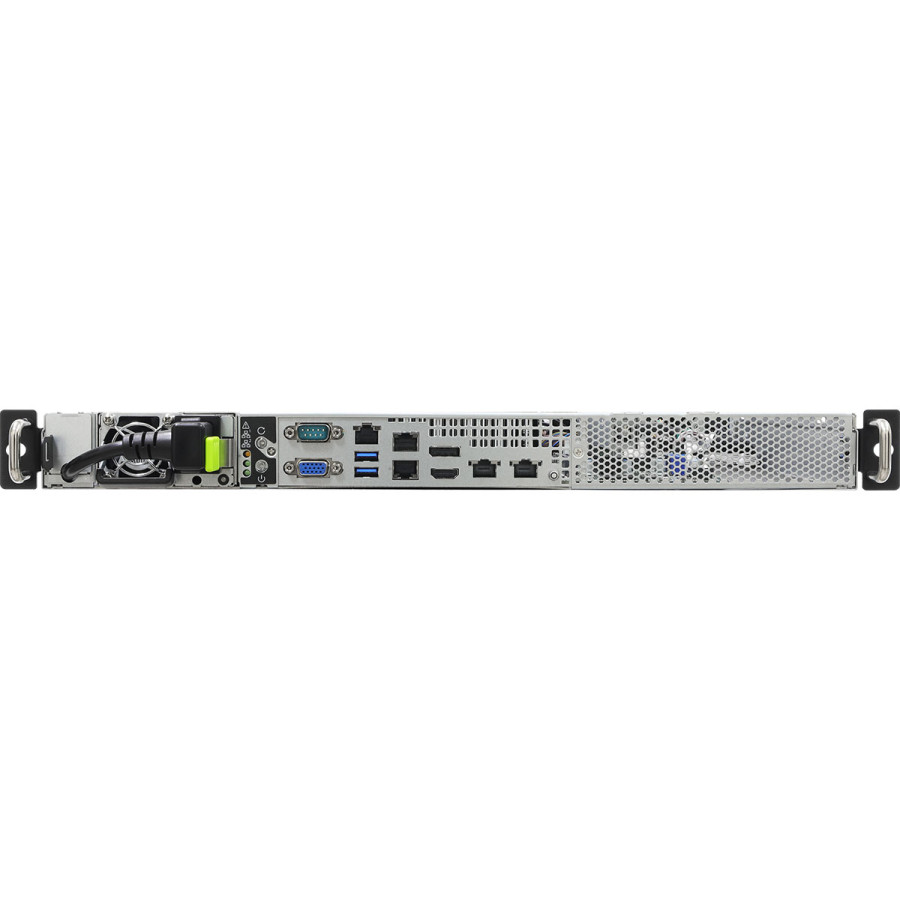

Front Panel
Buttons	Power w/ LED, Reset, UID w/ LED
LEDs	System Fault, LAN1/LAN2 Activity
I/O Ports	1 DB15 (VGA) 1 HDMI 1 DisplayPort 1 DB9 (COM) 2 USB Type-A (USB3.2 Gen1) 2 RJ45(10GbE) 2 RJ45(1GbE) 1 dedicated IPMI

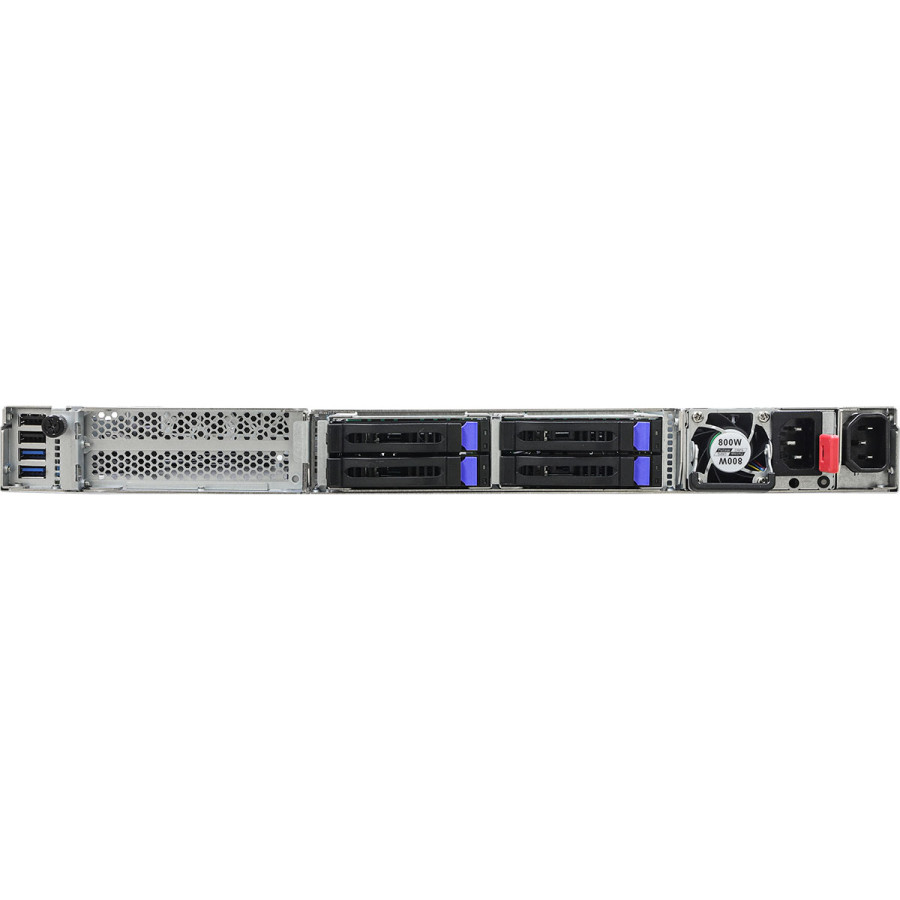

External Drive Bay / Storage
Rear Side	4 Hot-swap SFF 2.5'' drive bays (SATA 6Gb/s)
Rear Side Backplane	4-port SATA passive backplane
Internal Side	1 M-key (PCIe3.0 x4) [PCH]; support 2280/2260/2242/2230 form factor
Power Supply
Type	1+1 Hot-swap CRPS
Output Watts	800W @ 100-240Vac input
Efficiency	80-PLUS Platinum
AC Input	AC 100-240V/10-5A, 50/60Hz
System Fan
Fan	5 PWM single-rotor 40x56 mm fans 1 PWM dual-rotor 40x56 mm fans
Processor System
CPU	Supports Intel® Core™ 14th Gen, 13th & 12th Gen Intel® Core™ series processors
Socket	Single Socket LGA 1700
Thermal Design Power	max. up to 125W
Chipset	Intel® W680
System Memory
Supported DIMM Quantity	4 DIMM slots (2DPC)
Supported Type	DDR5 288-pin ECC/non-ECC UDIMM
Max. Capacity per DIMM	32GB
Max. DIMM Frequency	4400MT/s (2DPC-1DIMM) / 4000MT/s (2DPC-2DIMM 1R) / 3600MT/s (2DPC-2DIMM 2R)
Voltage	1.1V
PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16	1 FH dual-slot PCIe4.0 x16 via 1U2G-RB1U2SL-G4/1U1GX570 and 1U4G_SL2P_R_RDV
Ethernet
Additional GbE Controller	2 RJ45 (10GbE) by Intel® X710 2 RJ45 (1GbE) by Intel® i210
Server Management
BMC Controller	ASPEED AST2600: IPMI2.0 with iKVM and vMedia support
IPMI Dedicated GLAN	1 RJ45 Dedicated IPMI LAN port by Realtek RTL8211F
Rear I/O
USB 2.0 Port	2 Type-A (USB2.0)
USB 3.2 Gen1 Port	2 Type-A (USB3.2 Gen1)
System BIOS
BIOS Type	AMI 256 Mb SPI Flash ROM
BIOS Features	Plug and Play(PnP), ACPI 6.4 and above compliance wake up events, SMBIOS 3.6.0 and above, ASRock Rack instant flash
Hardware Monitor
Temperature	CPU, MB, Card side, VR, M.2, X710, TR Temperature sensing
Fan	Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) Fan Multi-Speed Control
Voltage	3VSB, 5VSB, CPU_VCORE, VCCIN_AUX, VDD2, 1.05V_PCH, 0V82SB_PCH, VCCGT, 1V8SB, VCCSA, BAT, 3V, 5V, 12V
Environment
Temperature	Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity	Non operation humidity: 20% ~ 90% ( Non condensing)
