AHGP
- AMD EPYC™ 9005/9004 series CPU
- NVIDIA H200 / NVIDIA RTX PRO™ 6000/4500 Blackwell Server Edition
- 4U Form Factor
Eight dual-slot GPUs in a high-density 4U compute server
Powered by AMD EPYC™ 9005 processors, AHGP delivers exceptional compute performance with advanced GPUs, high-speed interconnects, and increased fabric bandwidth. Supporting up to eight dual-slot GPUs in active or passive configurations, it offers flexible scalability through NVIDIA® NVLink® Bridge or AMD Infinity Fabric™ Link. Designed for demanding Enterprise AI and HPC workloads, AHGP provides the performance and scalability needed for intensive computing environments.
Key Features
- Powered by AMD EPYC™ 9005 processors with up to 192 Zen 5c cores, 12-channel DDR5 up to 6400 MHz, and 500W TDP per socket
- Fully compatible with NVIDIA® MGX architecture for fast, scalable deployment
- High-density 4U server supporting up to 8 dual-slot NVIDIA® H200 or NVIDIA RTX PRO™ Blackwell GPUs, up to 600W each
- Optimized design with 5x PCIe® 5.0 slots for high-bandwidth NICs and DPUs
- Exclusive tool-less design for easy maintenance and efficiency
Target market
Scale with ease and flexibility using MGX architecture

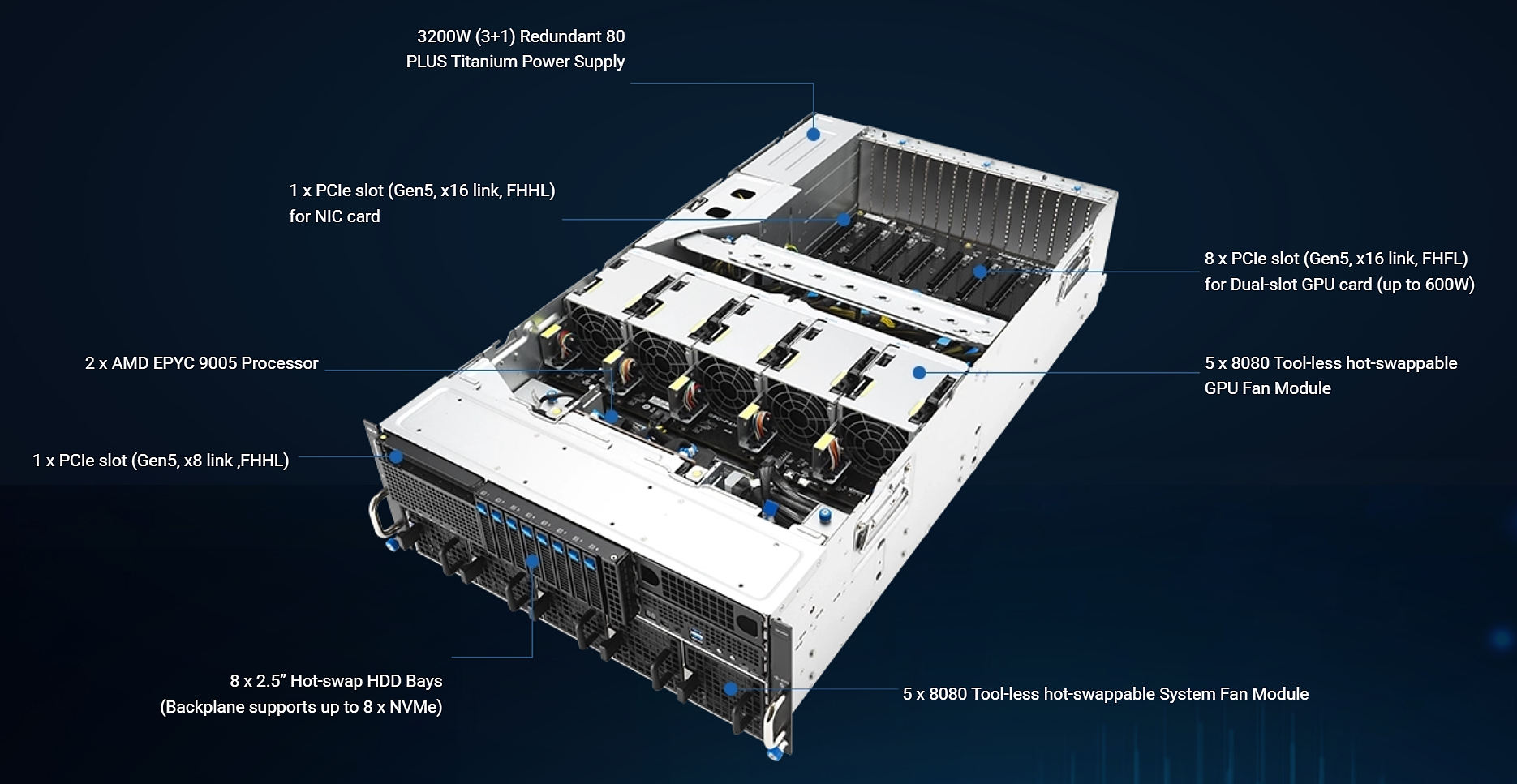

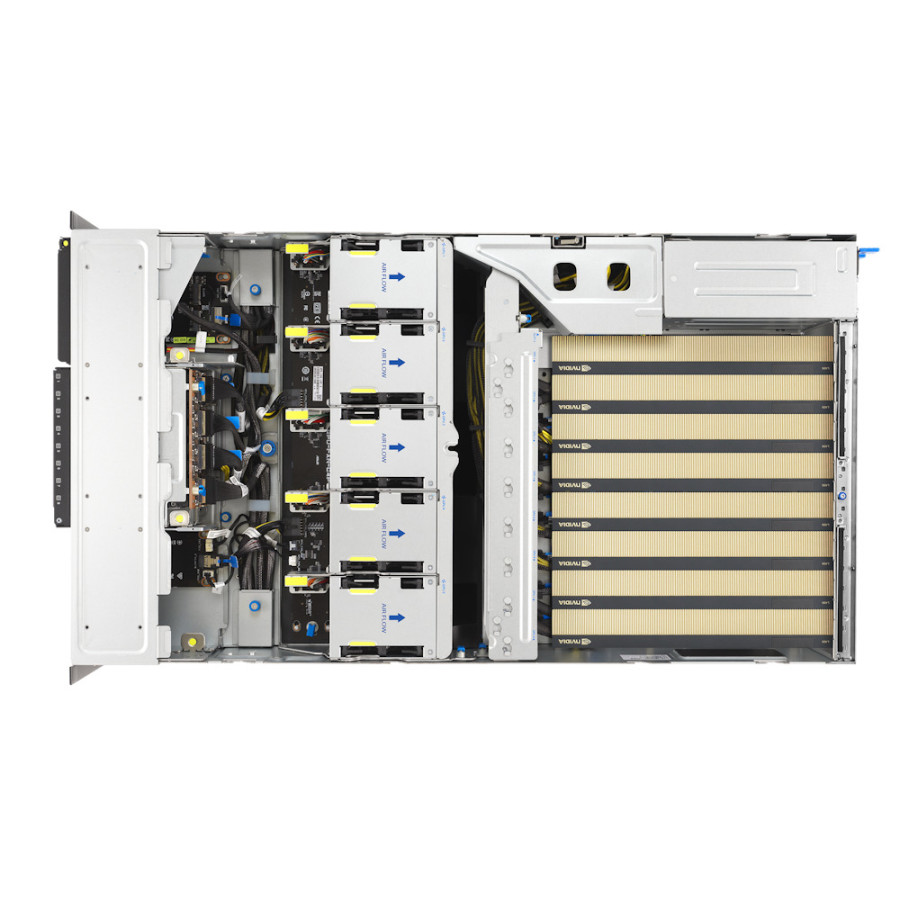

System Layout

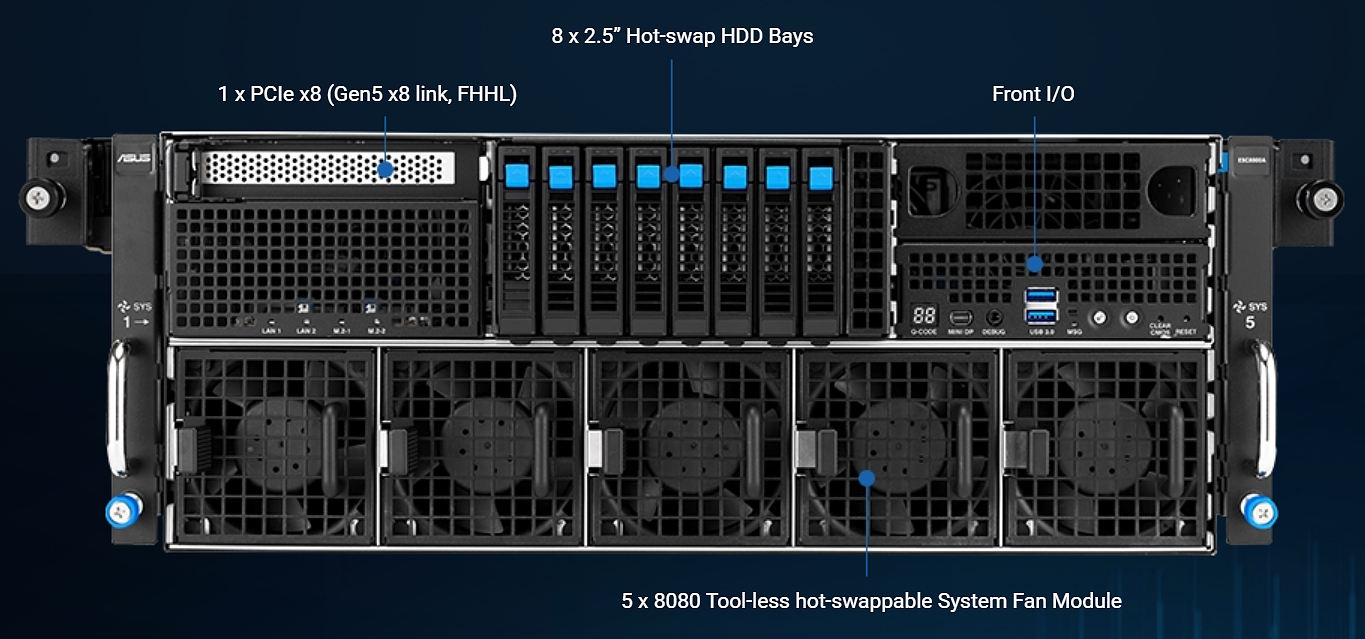

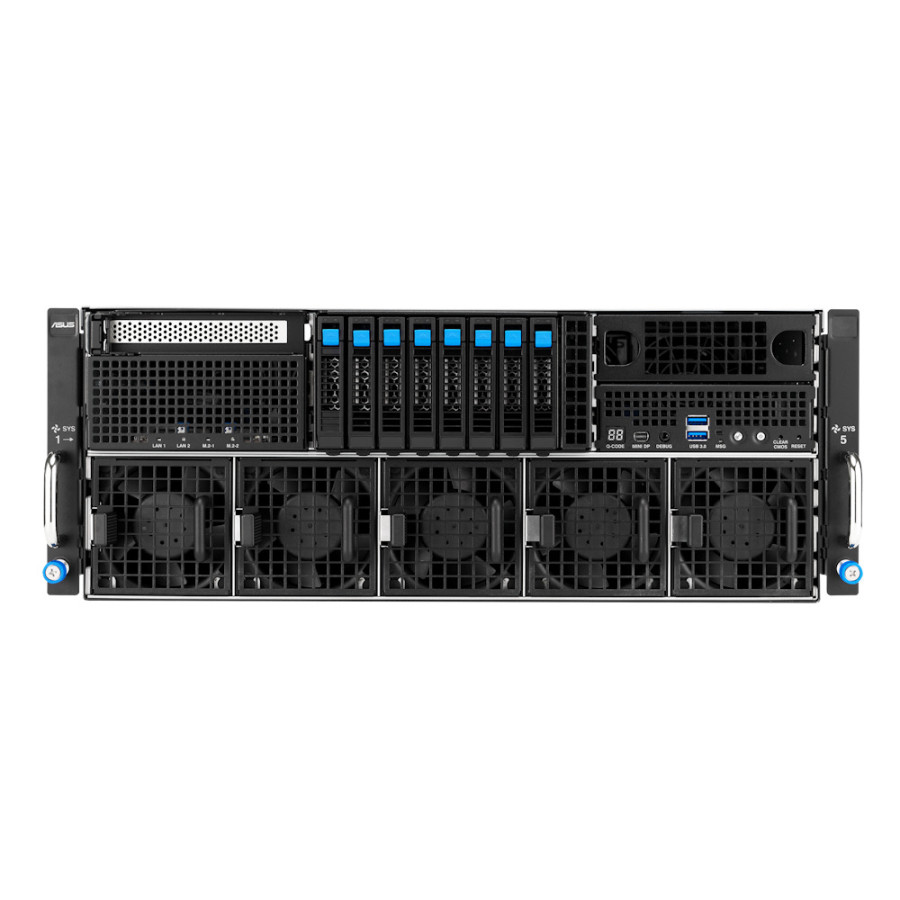

Front Panel

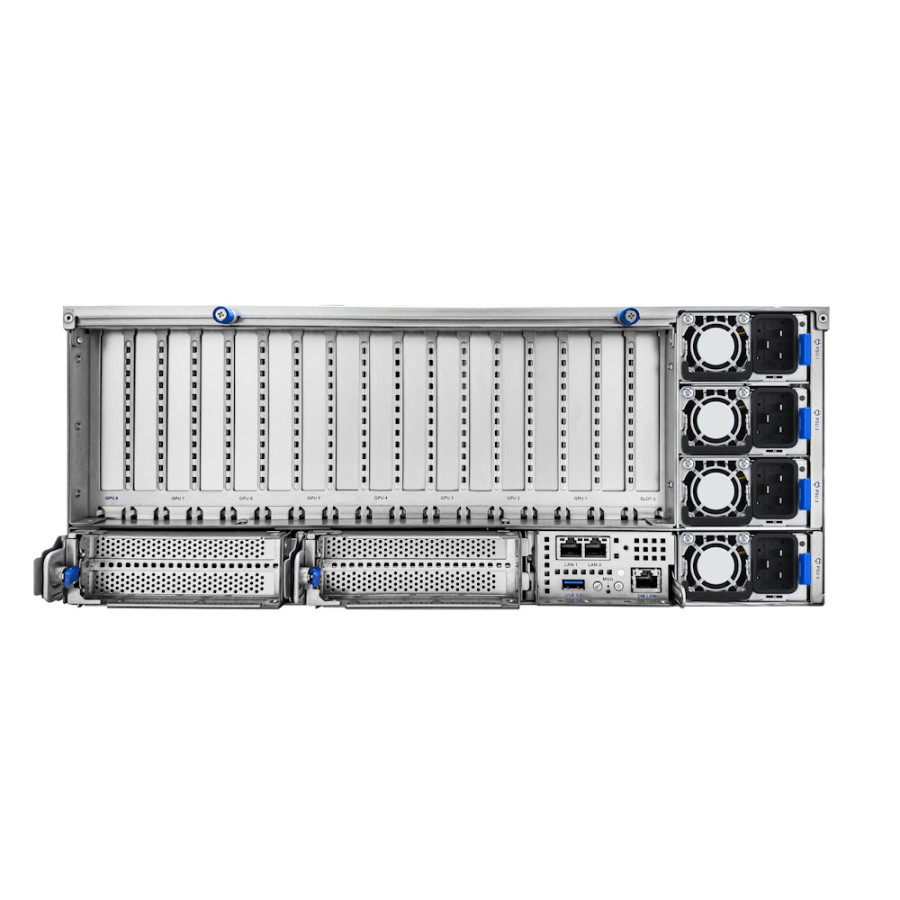

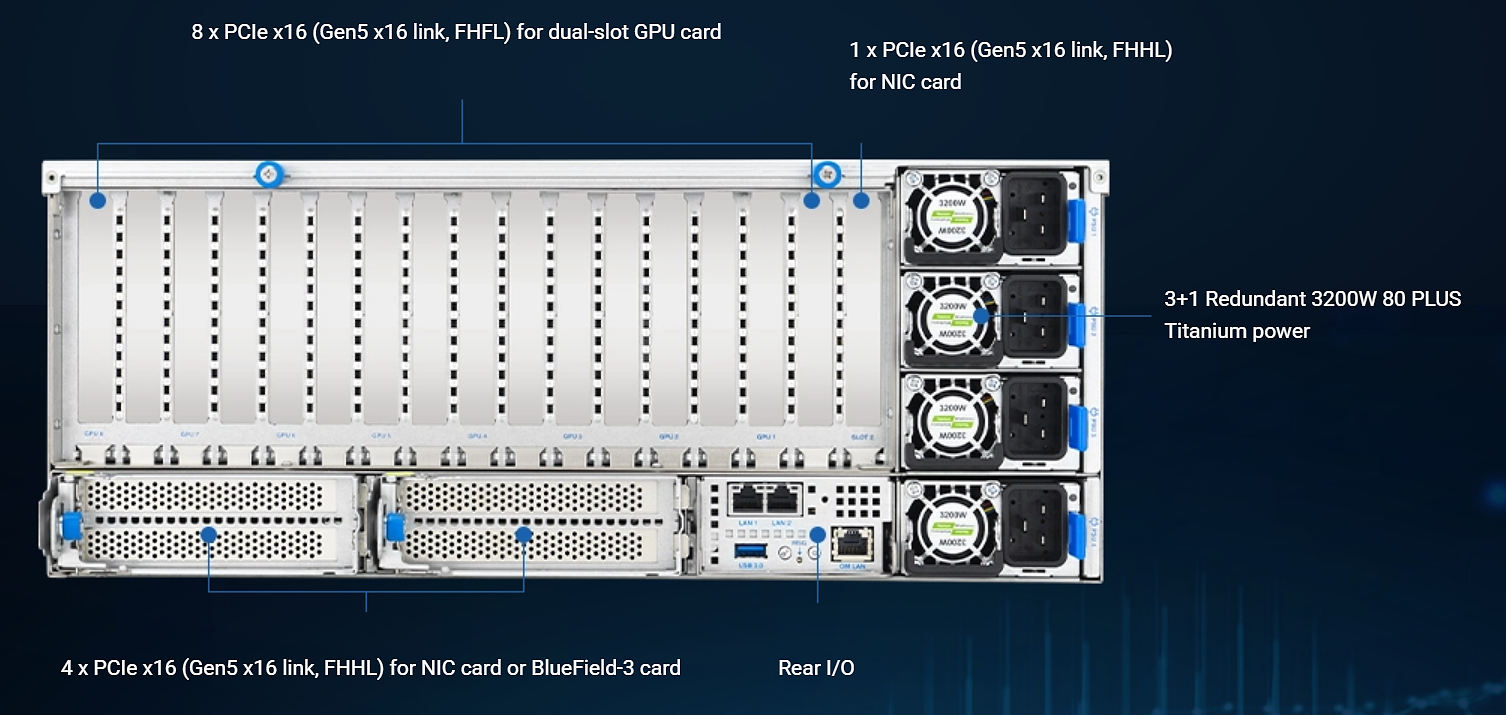

Rear Panel

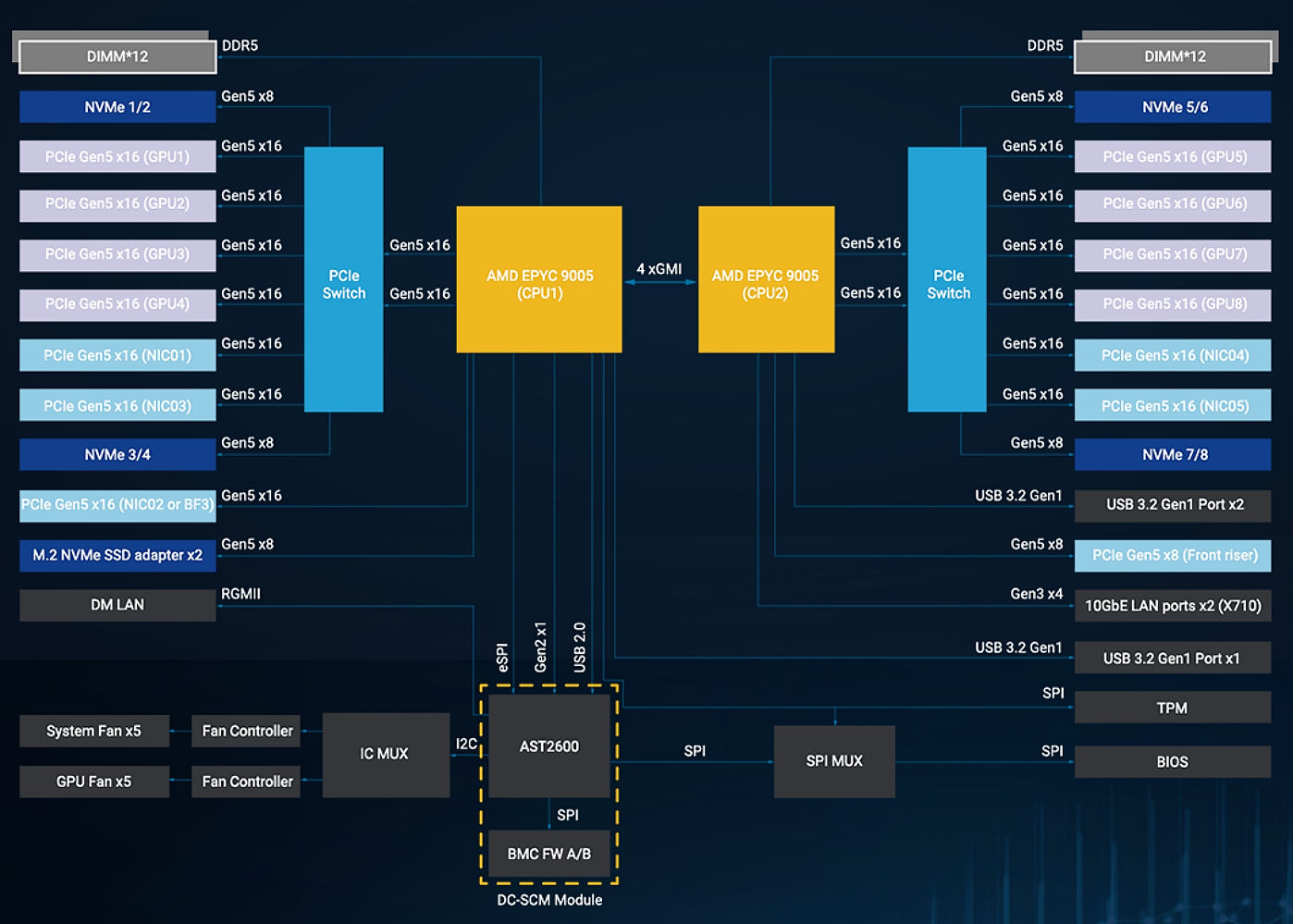

AHG Block Diagram
Supercharge performance with PCIe 5.0 switch connectivity
This server integrates the latest Broadcom PEX89000 series switches, delivering up to 1,024Gbps (128GBps) of raw bandwidth per x16 port for high-availability hyperscale environments. Built on PCI Express® 5.0, it enables fast, efficient communication between in-rack hosts and endpoints while simplifying connectivity across servers, storage, and networking. Designed for demanding AI, ML, DL, and hyper-converged workloads, it provides industry-leading PCIe switching performance for modern data centres.
Processor / System Bus
2 x Socket SP5 (LGA 6096)
AMD EPYC™ 9005/9004 series processors
* Up to 500W cTDP, TDP support varies by configuration
Memory
Total Slots:
24 (12 channel per CPU, 12 DIMM per CPU)
Capacity:
Maximum up to 3TB
Memory Type:
DDR5 6400/5600 RDIMM
Memory Size:
128GB, 96GB, 64GB, 32GB, 16GB RDIMM
Expansion Slots
Up to 14 slots
Rear:
8 x PCIe x16 for dual-slot GPU cards (Gen5 x16 link, FH/FL)
5 x PCIe x16 for NIC/BlueField-3 cards (Gen5 x16 link, FH/HL)
Front:
1 x PCIe x16 (Gen5 x8 link, FH/HL)
Storage
8 x 2.5" Front Hot-swap Storage Bays
Default SKU: Backplane supports up to 8 x NVMe
RAID SKU: Backplane supports up to 4 or 6 NVMe drives based on HBA/Raid card model installed
MGX compliance
2 x M.2 Socket, supports up to 22110 type (PCIe Gen5 x4 link)
(M.2 board supports up to 2 x NVMe)
Networking
2 x 10GbE LAN ports (RJ45, X710-AT2)
1 x Management Port
Front I/O Ports
1 x Mini DisplayPort
2 x USB 5Gbps ports
1 x Debug port
Rear I/O Ports
1 x USB 5Gbps port
2 x RJ-45 LAN ports
1 x RJ-45 management LAN port
Switch/LED
Front:
1 x Power switch/LED
1 x Location switch/LED
1 x Message LED
1 x Clear CMOS switch
1 x Reset Switch
2 x M.2 LEDs
2 x LAN LEDs
1 x Q-code/Port 80 LED
Rear:
1 x Power switch/LED
1 x Location switch/LED
1 x Message LED
Dimensions
800mm x 439.5mm x 175mm
31.5” x 17.3” x 6.9”
Form Factor
4U
Weight
Net Weight: 42 Kg
Gross Weight: 44.23 Kg
Power Supply
3+1 redundant 3200W 80 PLUS Titanium power supply
220-240 Vac, 16A (x4) 50/60Hz
Environment
Operating temperature: 10°C ~ 35°C
Non-operating temperature: -40°C ~ 60°C
Non-operating humidity: 20% ~ 95% (Non-condensing)
*For operating temperatures above 30°C, please contact us
| Title | Version | Date | Size | |
|---|---|---|---|---|
| AHGP Brochure |  |
| Title | Version | Date | Size | |
|---|---|---|---|---|
| HS Product Catalog | |
AHGP | ESC8000A-E13P H200/RTX PRO 6000/4500 Blackwell
- 4U dual-processor server powered by AMD EPYC™ 9005/9004 CPUs
- Built on the NVIDIA® MGX server architecture
- Supports up to 8 dual-slot GPUs
- Compatible with NVIDIA® H200 GPUs
- Compatible with NVIDIA RTX PRO™ 6000/4500 Blackwell Server Edition GPUs
- Up to 24 DIMM memory slots
- 5x PCIe® 5.0 expansion slots
- 8x 2.5" NVMe drive bays
-
$AUD $28,222.50
