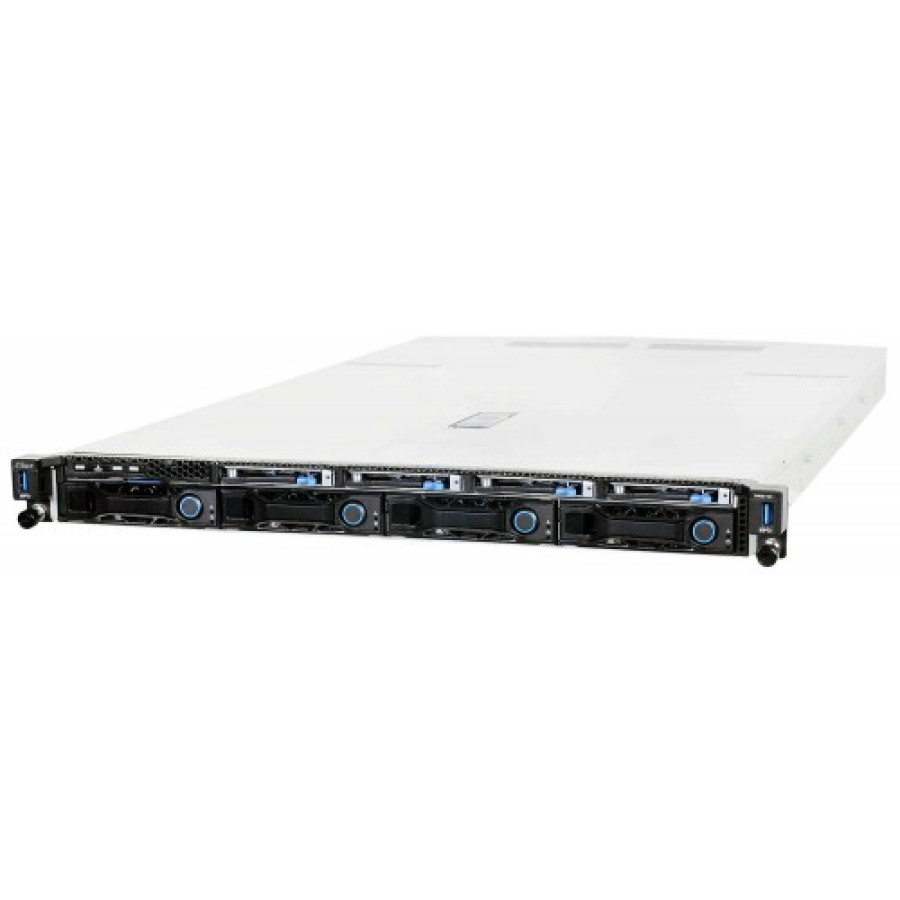

S5K | D43K-1U AMD EPYC 3rd Gen Milan

Unleash the Power of Dual AMD EPYC™ 7003 Series Processors with S5K | D43K-1UNative design for AMD EPYC™ 7003 Processors, ready for PCIe 4.0 eco-system deployment. Up to 128 core within 1U form factor, optimized

Unleash the Power of Dual AMD EPYC™ 7003 Series Processors with S5K | D43K-1U

Native design for AMD EPYC™ 7003 Processors, ready for PCIe 4.0 eco-system deployment.

Up to 128 core within 1U form factor, optimized for HPC workloads.

With 4 AMD xGMI-2 between dual EPYC™ processors up to 16GT/sec of CPU interconnect speed.


Flexible I/O Options, Powerful Compute.

Up to 5 PCIe expansion slots in a 1U chassis

Flexible I/O options with a variety of SAS mezzanine and OCP mezzanine option for diverse configurations.

Flexible storage configurations, tailored for diversified software defined workloads.

NUMA balanced PCIe topology for NVMe drives.

Support two onboard 2280 SATA M.2 for OS installation

Enhanced Security with Intrusion Switch Design

Alert server administrator when top cover removed while AC/DC on.

Auto-monitor any possible breach to your servers.

Quick Deployment with Great Serviceability

Tool-less designs for drive trays, riser brackets and fan modules.

Optional MicroSD card to record system health logs without opening the chassis even when powered-off.


Processor Type

AMD EPYC™ 3rd Generation 7003 Series Processors


Max. TDP Support

225W

(cTDP up to 240W)


Number of Processors

2 Processors


Internal Interconnect

16 GT/s


L3 Cache

256MB


Form Factor

1U


Dimensions

W x H x D (inch)

17.3 x 1.7 x 30.7

W x H x D (mm)

440 x 43.2 x 780


Chipset

SoC


Storage

Default Configuration

NVMe support

2.5" Hot-plug

3.5" Hot-plug


SKU - #1

[All Flash SKU]:

(12) 2.5" hot-plug SATA/ NVMe SSD

SKU - #2

[SFF Tiered SKU]:

(4) 2.5" hot-plug SATA/SAS drives + (8) 2.5" hot-plug NVMe/SATA/SAS drives

SKU - #3

[Hybrid SKU]:

(4) 3.5"/2.5" hot-plug SATA/SAS drives, (4) 9mm NVMe/SATA/SAS drives (optional)


Memory

Total Slots

32


Capacity

Up to 4TB (128Gx32) of memory capacity


Memory Type

3200 MHz DDR4 RDIMM/LRDIMM

2933 MHz DDR4 RDIMM/LRDIMM


Memory Size

16G, 32G, 64G, 128G RDIMM/LRDIMM/3DS DIMM


Expansion Slot

SKU - #1

Option 1

(1) PCIe 4.0 x8 OCP 3.0 mezzanine slot SFF

(1) PCIe 4.0 x8 Internal SAS Mezzanine slot

(2) PCIe 4.0 x16 FHHL

SKU - #2

Option 2

(1) PCIe 4.0 x8 OCP 3.0 mezzanine slot SFF

(1) PCIe 4.0 x8 Internal SAS Mezzanine slot

(3) PCIe 4.0 x16 HHHL


Network Controller

LOM

Dedicated (1) GbE management port


Optional NIC

Please refer to our Compatible Component List for more information


Front I/O

(2) USB 3.0 ports

Power/ID/Reset Buttons

Power/ID/Status LEDs


Storage Controller

Optional Controller

(2) 2280 SATA M.2 support for boot optimization

Quanta LSI® 3216 12Gb/s SAS mezzanine

Quanta LSI® 3516 12Gb/s SAS mezzanine (RAID 0,1,5,6,10,50,60)


Power Supply

1+1 High efficiency redundant hot-plug Platinum/Titanium 800W/1200W AC PSU and Gold 1200W -48V DC PSU


Onboard Storage

(2) 2280 SATA M.2


Fan

(8) dual rotor fans (15+1 redundant)


Video

Integrated ASPEED AST2500 8MB DDR4 video memory


System Management

Redfish v1.1

IPMI v2.0 Compliant, on board "KVM over IP" support


Rear I/O

(2) USB 3.0 ports

(1) VGA port

(1) RS232 serial port

(1) 1GbE RJ45 management port

(1) ID LED

(1) MicroSD slot


Operating Environment

Operating temperature: 5°C to 40°C

Non-operating temperature: -40°C to 70°C

Operating relative humidity: 20% to 85%RH

Non-operating relative humidity: 10% to 95%RH


TPM 1.2/2.0 SPI module


Datasheet 1
Title Version Date Size
AMD EPYC HS Br ochure v1.pdf
CATALOGUE 1
Title Version Date Size
HS Product Catalog 1 3-8-20 6371KB

S5K | D43K-1U AMD EPYC 3rd Gen Milan

Ultimate 1U Server for AMD EPYC Milan 3rd Gen Processors

  • NVIDIA® NGC Ready Server
  • Dual AMD EPYC processor with up to 4TB memory capacity
  • Up to five expansion slots optimized for PCIe 4.0 ecosystem and AI influence workloads.
  • Enhanced serviceability with tool-less, hot-swap designs


    • $AUD $5,733.00

      *RRP Pricing*
