Hyperscalers QDD-800G-SR8

Compliant to QSFP-DD/QSFP-DD800/QSFP112HWRev 6.2
Compliant with CMIS4.0
Parallel 8 Optical Lanes
IEEE802.3db 800GBASE-SR8 Specification compliant
8x106. 25Gb/s electrical interface(800GAUI-8)
Upto100mtransmission with OM4MMF
Maximum power consumption14W
MPO-16Receptacle
Single +3.3V power supply
Case temperature range: 0 ~+70℃
RoHS2.0complaint

$AUD $1,705.00
*RRP Pricing*
To View Channel Discounts Please Login
Ex Tax: $1,705.00

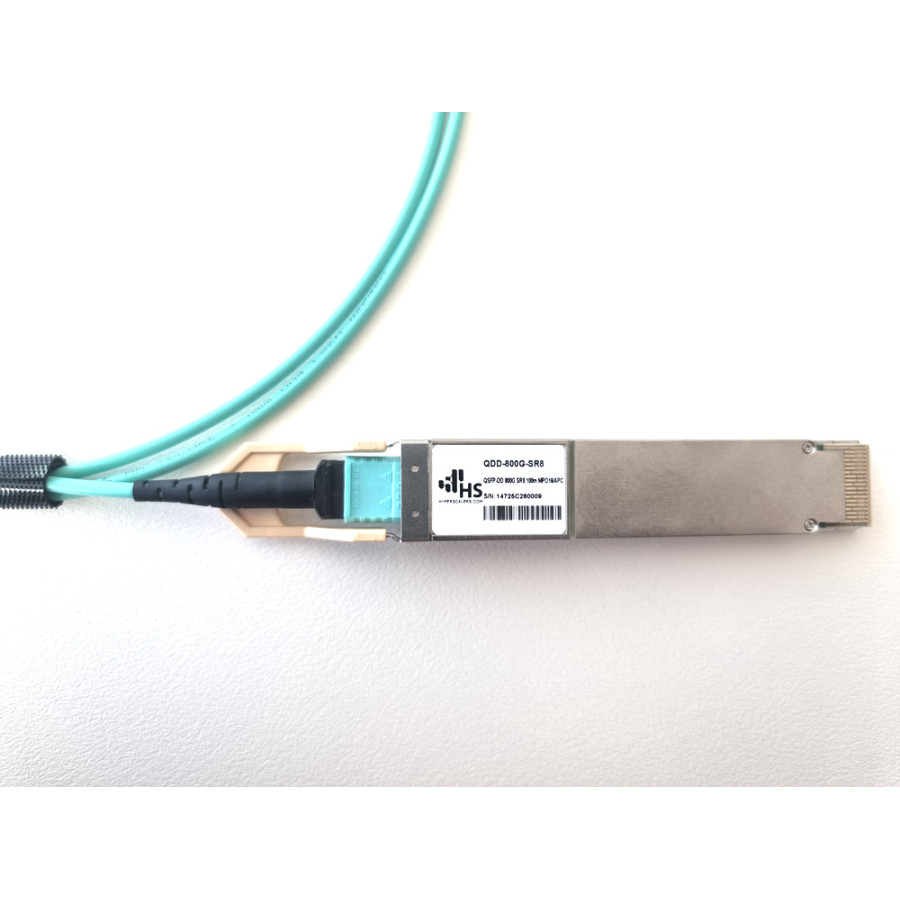

Hyperscalers QDD-800G-SR8

800Gbps QSFP-DD SR8 Transceiver

800Gbps Quad Small Form Factor Pluggable-Double Density (QSFP-DD) optical transceiver designed for 100 m optical communication applications.

Features

Compliant to QSFP-DD/QSFP-DD800/QSFP112HWRev 6.2
Compliant with CMIS4.0
Parallel 8 Optical Lanes
IEEE802.3db 800GBASE-SR8 Specification compliant
8x106. 25Gb/s electrical interface(800GAUI-8)
Upto100mtransmission with OM4MMF
Maximum power consumption14W
MPO-16Receptacle
Single +3.3V power supply
Case temperature range: 0 ~+70℃
RoHS2.0complaint

Applications

800GEthernet
Data Center Interconnect
Enterprise Networking

Functional Description

This product is an 800Gb/s QSFP-DD800 SR8 optical module designed for 100m optical communication applications. The module converts 8 channels of 100Gb/s (PAM4) electrical input data to 8 channels of parallel optical signals, each capable of 100Gb/s operation for an aggregate data rate of800Gb/s.

On the receiver side, the module converts 8 channels of parallel optical signals of 100Gb/s each channel for an aggregate data rate of 800Gb/s into 8 channels of 100Gb/s (PAM4) electrical output data.

An optical fiber cable with an MTP/MPO-16 connector can be plugged into the QSFP-DD800 SR8 module receptacle. Host FEC is required to support up to 100m fiber transmission.
