Q71L-4UPowerful Enterprise Grade 4U 4-socket Server with Unprecedented RAS and ScalabilityLarge enterprises and service providers supporting mission-critical applications and big data analytics in real time require serve

Q71L-4U

Powerful Enterprise Grade 4U 4-socket Server with Unprecedented RAS and Scalability

Large enterprises and service providers supporting mission-critical applications and big data analytics in real time require servers with massive memory and performance to capitalize on trends as they emerge. They also want the higher densitis, energy savings and serviceability enjoyed by hyperscale cloud datacenters.

To fill this emerging and growing market, Q71L-4U. The 4U, four-way server uses the Intel® Xeon® processor E7-4800/ 8800 v3  product family with up to 18 cores per processor, totaling 60 cores and 120 threads per system. The server offers a combination of reliability, high I/O throughput, expandability, efficiency and serviceability that until now were difficult to achieve in the enterprise datacenter.

Unsurpassed System Performance

The Q71L-4U is powered by Intel® Xeon® E7-4800/ 8800 v3 based processors using state-of-the-art 22nm manufacturing technology, with up to 18 cores per processor (or a total of 72 cores per system).

Reliability

Equipped with Intel® Run Sure Technology, the most advanced RAS features for the Intel® Xeon® E7 family.Q71L-4U reduces planned and unplanned downtime to protect data integrity, which is vital to mission-critical services and enhances data center efficiency.

Significant I/O Throughput and Scalability

96 DDR4 DIMM slots designed to achieve platform limitation by capitalizing the Intel Scalable Memory Buffer's capability to its maximum. In addition to the ten PCIe 3.0 slots with their astonishing expandability, the four hot-swap PCIe slots among them further enhance expandability with serviceability. The 11th slot is dedicated for QCT storage mezzanine to offer cost-efficient SAS/RAID support option. Twelve 2.5" 12Gb/s-ready hot-plug hard disk drives ( two supporting NVMe-ready PCIe SSDs) deliver ultra-low latency cache, best for data demanding and transaction-intensive workloads, such as in-memory or business analytics.

Serviceability

 Q71L-4U is designed with serviceability in mind throughout the whole development process. Its powerful serviceability features include:

• Front access to twelve hot-plug hard disk drives
• Four hot-swap PCIe slots
• Easy-to-maintain hot-swap fans
• LED indicator on each fan module
• Rear access to hot-swap power supply modules
• Bi-color LED indicator on each power supply module
• System power and system status LEDs
• System ID buttons and LEDs on front and rear system panels
• Color-coded parts to identify serviceable components
Best for
• Business-critical applications (ERP/ CRM, etc.)
• Enterprise back-end or in-memory databases
• Server virtualization/consolidation
• Financial service
• SAP



Processor
Processor Type
Intel® Xeon® processor E7-4800 v2 product family
Intel® Xeon® processor E7-4800 v3 product family
Intel® Xeon® processor E7-4800 v4 product family
Intel® Xeon® processor E7-8800 v3 product family
Intel® Xeon® processor E7-8800 v4 product family
Max. TDP Support
165W
Number of Processors
4 Processors
Internal Interconnect
6.4 / 7.2 / 8.0 / 9.6 GT/s
L3 Cache
Up to 60MB
Form Factor
Form Factor
4U
Dimensions
W x H x D (inch)
16.69 x 6.8 x 27.71
W x H x D (mm)
424 x 174 x 704
Chipset
Chipset
Intel® C602J
Storage
Default Configuration
2.5" Fixed
Options
(12) 2.5" hot-plug (*up to (2) hot-plug PCIe SSD support)
Memory
Total Slots
96
Capacity
Up to 6TB RDIMM
Up to 6TB LRDIMM
Memory Type
E7-4800 v2 : 1600/1333 MHz DDR3 RDIMM
E7-4800 v3, v4 : 1866 MHz DDR4 RDIMM
E7-8800 v3, v4 : 1866 MHz DDR4 RDIMM
Memory Size
E7-4800 v2 : 64GB, 32GB, 16GB, 8GB DDR3 RDIMM
E7-4800 v3, v4/E7-8800 v3, v4 : 64GB, 32GB, 16GB, 8GB DDR4 RDIMM
Expansion Slot
Default Configuration
(2) PCIe Gen3 x16, HH 3/4L ((1) has HS feature)
(8) PCIe Gen3 x8, HHHL ((3) has HS feature)
(1) PCIe Gen3 x8 dedicated storage mezzanine slot
(1) PCIe Gen3 x8 dedicated Network mezzanine slot
Network Controller
LOM
Option 1:
Intel® I350 dual-port 1 GbE
Dedicated 1 GbE management port
Option 2:
Intel® X540 dual-port 10GbE BASE-T
Dedicated 1 GbE management port
Optional NIC
Please refer to our Compatible Component List for more information
Front I/O
Front I/O
SATA DVD-ROM
(3) USB 2.0 ports
(1) VGA port
Storage Controller
Onboard
Intel® 602J:
(4) SATA 3Gb/s ports
(2) SATA 6Gb/s ports
SATA RAID 0, 1, 5, 10
Optional Controller
Please refer to our Compatible Component List for more information
Power Supply
Power Supply
2+2 High efficiency redundant 1600W PSU, 80 Plus Platinum
Onboard Storage
Onboard Storage
(2) USB Flash Drives
Fan
Fan
(8) hot-plug system fans
Video
Video
Integrated AST2400 with 8MB DDR3 Video memory (option)
System Management
System Management
IPMI v2.0 Compliant, on board "KVM over IP" support
Quanta Datacenter Manager 2.0/QDCM 2.0 (Optional)
Rear I/O
Rear I/O
(2) USB 2.0 ports
(1) VGA port
(1) RS232 serial Port
(2) 1 GbE or 10G BASE-T RJ45 port
(1) GbE RJ45 magement port
Operating Environment
Operating Environment
Operating temperature: 5°C to 35°C (41°F to 95°F)
Non-operating temperature: -40°C to 65°C (-40°F to 149°F)
Operating relative humidity: 20% to 85%RH.
Non-operating relative humidity: 10% to 90%RH
TPM
TPM
Yes (With TPM 1.2 option)
Weight (Max. Configuration)
Weight (Max. Configuration)
34.68 (kg)
76.46 (lbs)
Datasheet 1
Title Version Date Size
QuantaGrid Q71L-4U 2015/06/02 167.11KB
User manual 2
Title Version Date Size
Q71L-4U_UG 1/7/2016 2.42MB
QuantaGrid Q71L 4U UG HDD Numbering Added 10/1/2017 2.43MB
Compatible Components List 1
Title Version Date Size
Q71L-4U CCL 2016/06/15 24.9KB
FRU Part List 1
Title Version Date Size
Q71L-4U FRU Part List 11/11/2014 366KB
BIOS 1
Title Version Date Size
Q71L-4U BIOS S4L_3C04.02 13/7/2018 9.83MB
BMC 1
Title Version Date Size
Q71L-4U BMC 3.56 4/7/2019 34.54MB
Driver-Linux 1
Title Version Date Size
Q71L-4U BMC 0.46 4/7/2019 34.33MB
Driver-Windows 1
Title Version Date Size
Q71L-4U VGA 0.99 19/4/2016 6.14MB

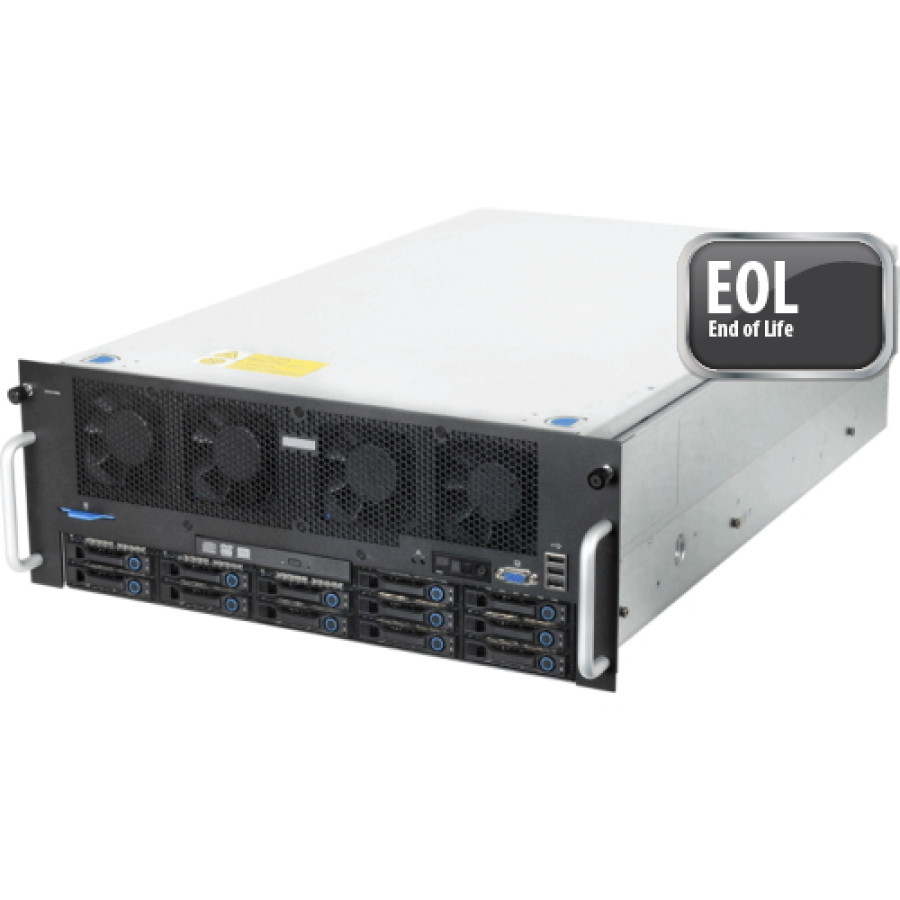

S4L | Q71L - 4U

Powerful Enterprise Grade 4U 4-Socket Server with Unprecedented RAS and Scalability

  • SAS 3.0 Ready & NVMe PCIe SSDs Support
  • Extraordiry Memory Capacity with up to 96 DIMM Slots
  • Astonishing Expandability with 10 Standard PCIe 3.0 Slots & 3 Mezzanine Slots
  • Unsurpassed Computing Power supporting up to Four Intel® Xeon® E7-4800 v3/ E7-8800 v3 Series



  • $AUD $12,181.05

    *RRP Pricing*
