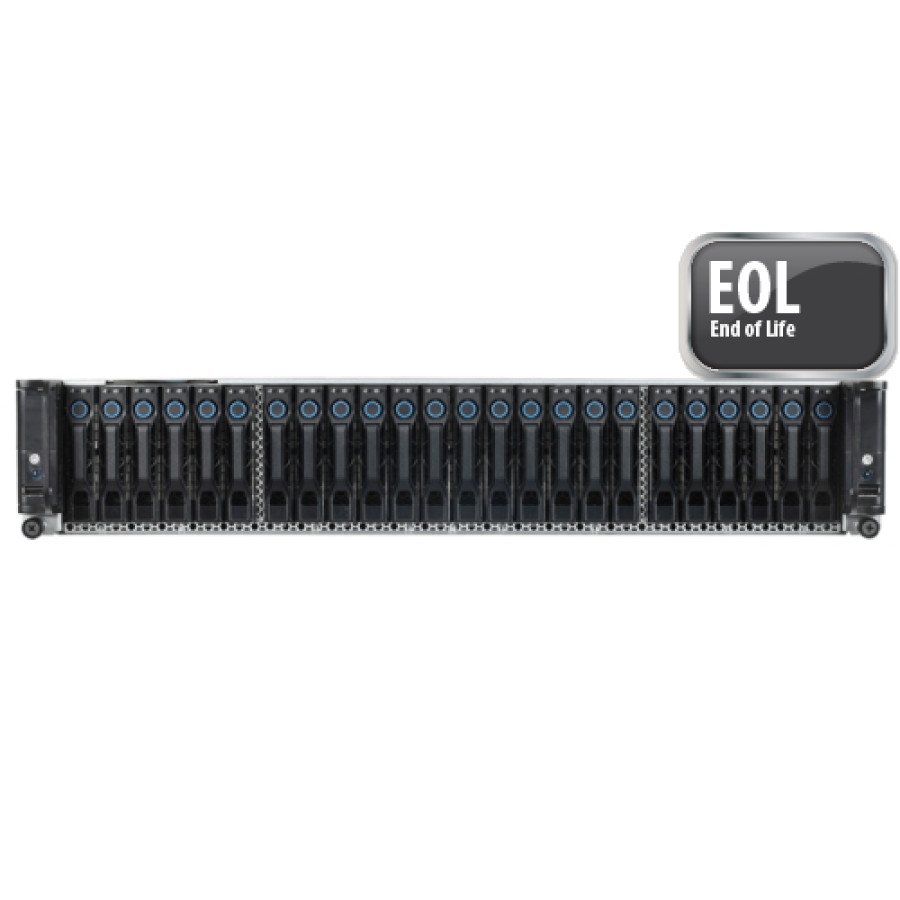

S2SR | T21SR-2U
2-Node High Availability Storage Server
S2SR |T21SR-2U is a 2U two-node Cluster-in-a-Box server. Two server nodes are clustered via a PCIe interconnection and sharing up to 24 disk drives in a 2U chassis.The 10 GB connect between the server boards via the mid-plane, so if one server board fails, the other server board is able to take control and gain full access to HDD and front end host I/O, keeping the system up and running. Both server boards can also work in Active-Active mode.System Integrity ProtectionThe biggest challenge during system operation is avoiding storage server failure, power loss, short interrupt or power supply unit failure. S2SR |T21SR-2U uses a backup battery unit (BBU) to provide of power up to 120 seconds for each node after a power failure. It also assists a graceful to shut down and maintains system and data integrity.Qualified Operating Systems
On-The-Fly Cache Synchronization
S2SR |T21SR-2U offers two kinds of fail-over solutions, the 10Gb PCIe interconnection and the Non-Transparent Bridge (NTB) technology. An owner can choose either one or both. This architecture allows storage software vendors to implement enterprise-level cluster functions with rapid cached synchronization to meet their high-availability requirements. Lastest Generation Platform with DDR4 Technology S2SR |T21SR-2U operates with the latest Intel® E5-2600 v3 & v4 product family and the newest DDR4 memory technology. It provides maximum 18-core count CPU with enhanced QPI bandwidth to 9.6GT/s, a 20 percent improvement from the previous generation. With up to 1024 GB memory capacity, the system performance has a Linpack score up to 80 percent* and is optimized to run the most demanding of applications. Various OCP Network Options QCT uses the modular design concept to optimize system interoperability, flexibility and serviceability. QCT’s flexible network mezzanine cards are designed to fit into every QCT server/storage system to reduce the complexity and uncertainty of the system availability options.
Dual Rotor Fan Design
_16112318514.gif "ChineseROHS-Compliance_20-(China)"){kind=icon}
%20(Safety)_16122914570.gif "UL listed (US & Canada) (Safety)"){kind=icon}
_16112317439.jpg "MSIP--class--A(Korea)"){kind=icon}
| Processor | |
|---|---|
| Processor Type | Intel® Xeon® processor E5-2600 v3 product family Intel® Xeon® processor E5-2600 v4 product family |
| Max. TDP Support | 135W 145W* |
| Number of Processors | 2 Processors |
| Internal Interconnect | 6.4 / 8.0 / 9.6 GT/s |
| L3 Cache | Up to 45MB |
| Form Factor | |
|---|---|
| Form Factor | 2U Dual Clustered Nodes |
| Dimensions | |
|---|---|
| W x H x D (inch) | 17.48 x 3.44 x 31.1 |
| W x H x D (mm) | 444 x 87.5 x 790 |
| Chipset | |
|---|---|
| Chipset | Intel® C610 |
| Storage | |
|---|---|
| Default Configuration | 2.5" Hot-plug 3.5" Hot-plug |
| Options | Option 1: (12) 3.5" hot-plug SAS HDD (2) 2.5" hot-plug SSD HDD for OS installtion per node (1) USB Flash Module Option 2: (24) 2.5" hot-plug SAS HDD (2) 2.5" hot-plug SSD HDD for OS installtion per node (1) USB Flash Module |
| Memory | |
|---|---|
| Total Slots | 16 |
| Capacity | Up to 512GB RDIMM Up to 1024GB LRDIMM |
| Memory Type | 2133/2400 MHz DDR4 RDIMM 2133/2400 MHz DDR4 LRDIMM |
| Memory Size | 32GB, 16GB, 8GB RDIMM 64GB, 32GB LRDIMM |
| Expansion Slot | |
|---|---|
| Default Configuration | (1) PCIe Gen3 x8 for Intel Non-Transparent Bridge (NTB) per node (1) PCIe Gen3 x8 for 10G Base-KR per node (2) PCIe Gen3 x8 , LP MD-2 per node (1) PCIe Gen3 x8 for SAS controller per node |
| Network Controller | |
|---|---|
| LOM | Option 1: Intel® I350 dual-port 1 GbE per node Dedicated 10/100 management port per node Option 2: Intel® X540 dual-port 10GbE BASE-T per node** Dedicated 10/100 management port per node Option 3: Intel® 82599ES dual-port 10G SFP+ per node Dedicated 10/100 management port per node |
| Optional NIC | Please refer to our Compatible Component List for more information |
| Front I/O | |
|---|---|
| Front I/O | (1) USB 2.0 ports |
| Storage Controller | |
|---|---|
| Onboard | Intel® C610: (6) SATA 6Gb/s ports SATA RAID 0, 1, 10 |
| Optional Controller | Please refer to our Compatible Component List for more information |
| Power Supply | |
|---|---|
| Power Supply | (2) high efficiency hot-plug 1200W PSU, 80 Plus Platinum (2) high efficiency hot-plug 1600W PSU, 80 Plus Platinum |
| Fan | |
|---|---|
| Fan | (4) System fans |
| Video | |
|---|---|
| Video | Integrated AST2400 with 8MB DDR3 video memory |
| System Management | |
|---|---|
| System Management | IPMI v2.0 Compliant, on board "KVM over IP" support Quanta Datacenter Manager 2.0/QDCM 2.0 (Optional) |
| Rear I/O | |
|---|---|
| Rear I/O | (2) USB 3.0 ports (1) VGA port (1) RS232 serial Port (2) 1 GbE or 10G BASE-T RJ45 port (1) 10/100 RJ45 magement port |
| Operating Environment | |
|---|---|
| Operating Environment | Operating temperature: 5°C to 35°C (41°F to 95°F) Non-operating temperature: -40°C to 70°C (-40°F to 158°F) Operating relative humidity: 20% to 85%RH Non-operating relative humidity: 20% to 90%RH ---- * Support 10Gb KR and NTB interconnection for Node Interconnection * Restriction applies. Please contact Quanta Sales representive regarding 145W support * Restriction applies. Please contact Quanta Sales representive regarding Intel® X540 dual-port 1 |
| TPM | |
|---|---|
| TPM | TPM (With TPM 2.0, TPM 1.2 Optioan) |
| Weight (Max. Configuration) | |
|---|---|
| Weight (Max. Configuration) | 41,42 (kg) |
