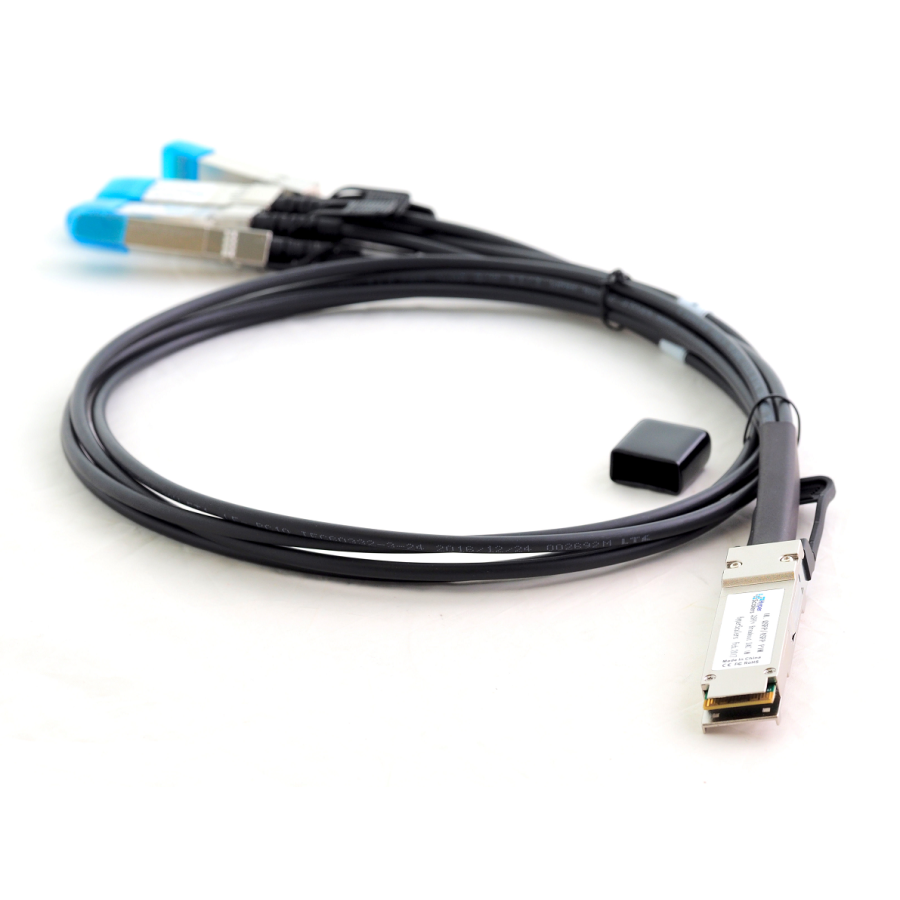

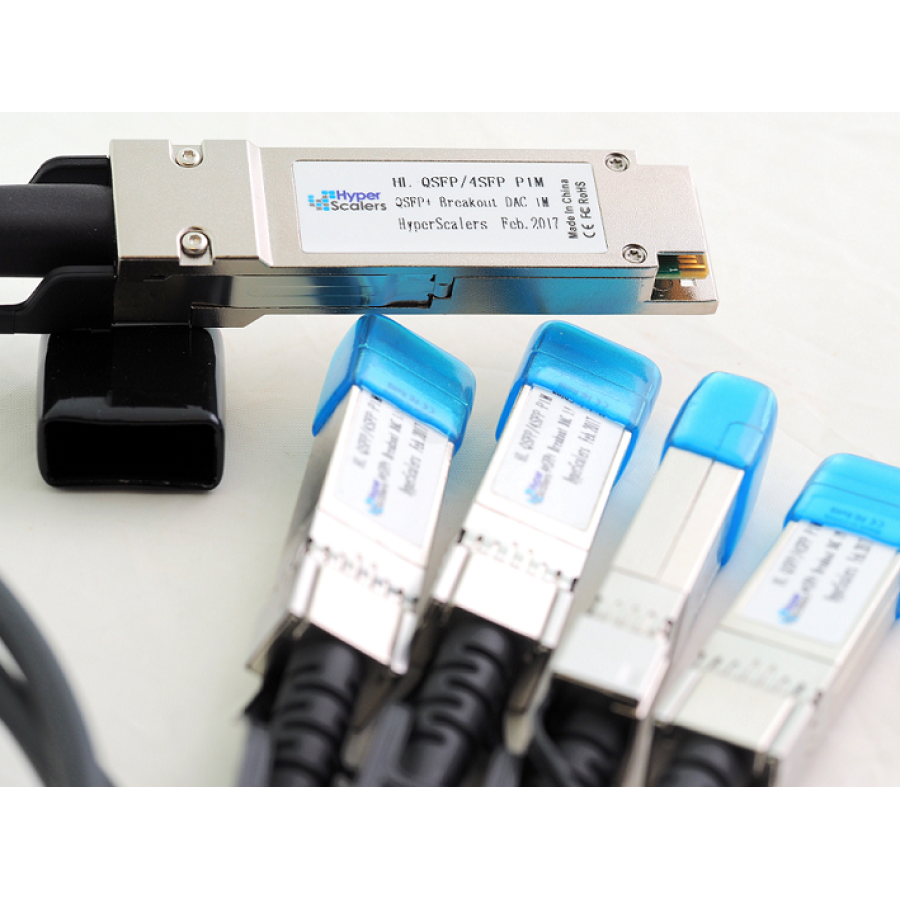

Hyperscalers 40G QSFP+ to 4x10G SFP+ Breakout Cable DAC 1M

Cost effective breakout solutions for your Data Center

Compatible with all major vendors; Quanta, Cisco, Edgecore etc
Ideal for short distance breakout applications

$AUD $153.86
*RRP Pricing*
To View Channel Discounts Please Login
Ex Tax: $139.87

Overview
Specification

Hyperscalers 40G QSFP+ to 4x10G SFP+ Breakout Cable DAC 1M

Cost effective breakout solutions for your DC

Hyperscalers QSFP+ to 4x SFP breakout DAC cables are a robust copper solution for your data centre. Our cables are compliant with the QSFP+ SFF 8436 specifications. Our SFP+ Direct Attach Cables are compliant with the SFF-8431, SFF-8432 and SFF-8472 specifications. Various choices of wire gauge are available from 30 to 24 AWG with various choices of cable length (up to 7m).

Features

Compliant with SFF-8436, SFF-8431, SFF-8432 and SFF-8472
Up to 10.3125Gbps data rate per channel
Up to 7m transmission
Operating temperature: 0-70°C
Single 3.3V power supply
RoHS Compliant

Benefits

Cost-effective alternative to fiber
Optimized design for signal integrity

General Product Characteristics

Q/4SFP+ DAC Specifications
Number of Lanes	Tx & Rx
Channel Data Rate	10.3125 Gbps
Operating Temperature	0 to 70°C
Storage Temperature	-40 to + 85°C
Supply Voltage	3.3 V nominal
Electrical Interface	38 pins edge connector (QSFP+) 20 pins edge connector (SFP+)
Management Interface	Serial, I²C
