GZX | G593-ZX1-AAX1
HPC/AI Server - AMD EPYC™ 9004 - 5U DP AMD Instinct™ MI300X 8-GPU
4th Generation AMD EPYC™ Processors for SP5 Socket
The path to AMD's 5nm 'Zen 4' architecture was paved with many successful generations of EPYC innovations and chiplet designs, and AMD EPYC 9004 Series processors continue this progression. Adding a host of new features to target a wide range of workloads, the new family of EPYC processors will deliver even better CPU performance and performance per watt, and do so on a platform with 2x the throughput of PCIe 4.0 lanes that also has support for 50% more memory channels. For this new platform, GIGABYTE has products ready to get the most out of EPYC-based systems that support fast PCIe Gen5 accelerators and Gen5 NVMe drives, in addition to support for high performant DDR5 memory.

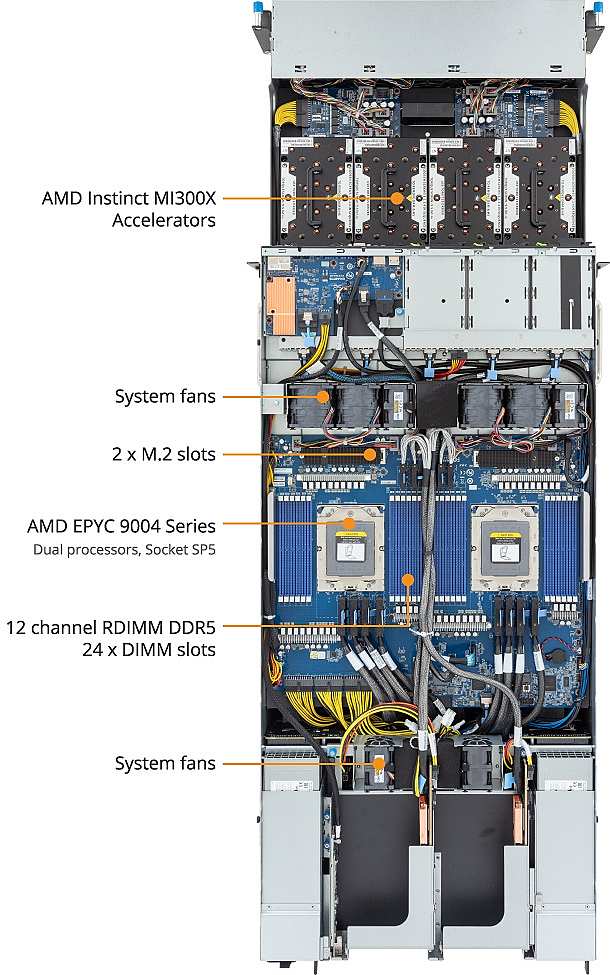

Product Overview
GZX Block Diagram
High Performance
Supports AMD Instinct™ MI300X Accelerators
AMD Instinct™ MI325X Accelerators
The AMD Instinct MI300X Platform integrates 8 fully connected MI300X GPU OAM modules onto an industry-standard OCP design via 4th-Gen AMD Infinity Fabric™ links, delivering up to 1.5TB HBM3 capacity for low-latency AI processing. This ready-to-deploy platform can accelerate time-to-market and reduce development costs when adding MI300X accelerators into existing AI rack and server infrastructure.
Power Efficiency
Automatic Fan Speed Control
These servers are equipped with Automatic Fan Speed Control to optimize cooling and power efficiency. Fan speeds are automatically adjusted based on temperature readings from strategically placed sensors, ensuring optimal airflow and energy usage.
High Availability
Smart Ride Through (SmaRT)
To minimize server downtime and prevent data loss during AC power interruptions, we incorporate Smart Ride Through (SmaRT) in all our server platforms. In the event of a power loss, the system will throttle to maintain availability while reducing power consumption. Capacitors in the power supply provide 10-20ms of backup power, giving the system enough time to switch to a backup power source and ensure continuous operation.
Smart Crises Management and Protection (SCMP)
SCMP is a patented feature which is deployed in servers with non-fully redundant PSU design. With SCMP, in the event of faulty PSU or overheated system, the system will force the CPU into an ultra-low power mode that reduces the power load, which prevents the system from unexpected shutdown and avoids component damage or data loss.
Dual ROM Architecture
If the ROM that stores the BMC and BIOS fails to boot, the system will reboot with the backup BMC and/or BIOS replacing the primary. Once the primary BMC is updated, the ROM of the backup BMC will automatically update the backup through synchronization. For the BIOS, it can be updated based on user's choice of firmware version.
Hardware Security
Optional TPM 2.0 Module
For hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data. TPM modules come in either a Serial Peripheral Interface or Low Pin Count bus.
User Friendly
Tool-less Drive Bays Design
Clipping mechanism secures the drive in place. Install or replace a new drive in seconds.
Dimensions (WxHxD, mm)
5U
447 x 221.2 x 965
Motherboard
MZB3-G43
CPU
AMD EPYC™ 9005 Series Processors
AMD EPYC™ 9004 Series Processors
Dual processor, cTDP up to 400W [1]
[1] Please refer to the QVL on the support page or contact our sales representatives for verified CPU SKUs.
[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket
2 x LGA 6096
Socket SP5
Chipset
System on Chip
Memory
24 x DIMM slots
DDR5 memory supported
12-Channel memory per processor
RDIMM: Up to 4800 MT/s
LAN
Front:
2 x 10Gb/s LAN (1 x Intel® X710-AT2)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Rear (MLAN board - CDB66):
1 x 10/100/1000 Mbps Management LAN
[Note] When both MLAN ports are connected with cables, the front MLAN port will be set as the default.
Video
Integrated in ASPEED® AST2600
- 1 x VGA port
Storage
Front hot-swap:
8 x 2.5" Gen5 NVMe/SATA/SAS-4 [1]
- (NVMe from PEX89104)
Internal M.2:
1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_1
1 x M.2 (2280/22110), PCIe Gen3 x1, from CPU_0
[1] Storage card is required to support SATA and SAS drives.
SAS
Require SAS add-in cards
RAID
Require RAID add-in cards
Modular GPU
8 x AMD Instinct™ MI300X OAM GPUs
PCIe Expansion Slots
Extension Board CPBG044 x 2:
- 8 x LP x16 (Gen5 x16), from PEX89104
Riser Card CPBGD20 x 2:
- 4 x FHHL x16 (Gen5 x16), from PEX89048
Front I/O
2 x USB 3.2 Gen1 ports (Type-A)
1 x VGA port
2 x RJ45 ports
1 x MLAN port (default)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x Storage activity LED
1 x System status LED
Rear I/O
MLAN board - CDB66:
1 x MLAN port
Backplane Board
Speed and bandwidth:
PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
Security Modules
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
Power Supply
4+2 3000W 80 PLUS Titanium redundant power supplies [1]
AC Input:
- 100-120V~/ 16A, 50/60Hz
- 200-240V~/ 16A, 50/60Hz
DC Input: (Only for China)
- 240Vdc/ 16A
DC Output:
- Max 1320W/ 100-110V~
+54V/ 24.4A
+12Vsb/ 3A
- Max 1500W/ 111-120V~
+54V/ 27.8A
+12Vsb/ 3A
- Max 2810W/ 200-207V~
+54V/ 52A
+12Vsb/ 3A
- Max 3000W/ 208-240V~ or 240Vdc Input
+54V/ 55.6A
+12Vsb/ 3A
[1] The system power supply requires C19 power cord.
System Management
ASPEED® AST2600 Baseboard Management Controller
Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings
OS Compatibility
Please refer to OS compatibility table in support page
System Fans
Motherboard:
2 x 40x40x56mm (32,000rpm)
4 x 60x60x56mm (24,000rpm)
PCIe slots:
4 x 40x40x28mm (25,000rpm)
2 x 40x40x56mm (32,000rpm)
GPU tray:
16 x 80x80x80mm (17,000rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
1200 x 890 x 700 mm
Packaging Content
1 x G593-ZX1-AAX1
2 x CPU heatsinks
1 x L-shape Rail kit
Part Numbers
- Barebone w/ AMD module (9005/9004): 6NG593ZX1DR000ABX1*
- Barebone w/ AMD module (9004): 6NG593ZX1DR000AAX1*
- Motherboard: 9MZB3G43UR-000*
- L-shape Rail kit: 25HB2-A96102-K0R
- CPU heatsink: 25ST1-44320Z-C1R
- Front panel board - CFPG540: 9CFPG540NR-00*
- Backplane board - CBPG680: 9CBPG680NR-00*
- Fan module 40x40x28mm: 25ST2-44282D-D0R
- Fan module 40x40x56mm: 25ST2-40562M-A0R
- Fan module 40x40x56mm: 25ST2-40562N-A0R
- Fan module 60x60x56mm: 25ST2-665620-S1R
- Fan module 80x80x80mm: 25ST2-888032-S1R
- Fan module 80x80x80mm: 25ST2-808037-S1R
- Riser card - CPBGD20: 9CPBGD20NR-00*
- PCIe extension board - CPBG044: 9CPBG044NR-00*
- PCIe switch board - CPBG902: 9CPBG902NR-00*
- Rear MLAN board - CDB66: 9CDB66NR-00*
- Power supply: 25EP0-203K00-L0S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
| Title | Version | Date | Size | |
|---|---|---|---|---|
| Product Catalog |  |
GZX | G593-ZX1-AAX1
GPU HPC/AI Server
- 8 x AMD Instinct™ MI300X OAM GPUs
- Dual AMD EPYC™ 9004 Series Processors
- 12-Channel DDR5 RDIMM, 24 x DIMMs
- Dual ROM Architecture
- 2 x 10Gb/s LAN ports via Intel® X710-AT2
- 2 x M.2 slots with PCIe Gen3 x4 and x1 interface
- 8 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
- 4 x FHHL PCIe Gen5 x16 slots
- 8 x LP PCIe Gen5 x16 slots
-
