Take Advantage of the Open Compute Spec v.3.0
Quanta F06A utilized the full advantage of the latest Open Compute Motherboard spec v.3.0, which are the same motherboard that powers the one of the largest datacenter in the world. Open Compute Motherboard spec v.3.0 had validated with the industry’s highest reliability standards, it is also the single most manufactured motherboard in the world for its astonishing manufacturing perfection. It tailors these for mainstream enterprise and high-performance-computing.
High Density 2U4N Design for Maximum Performance

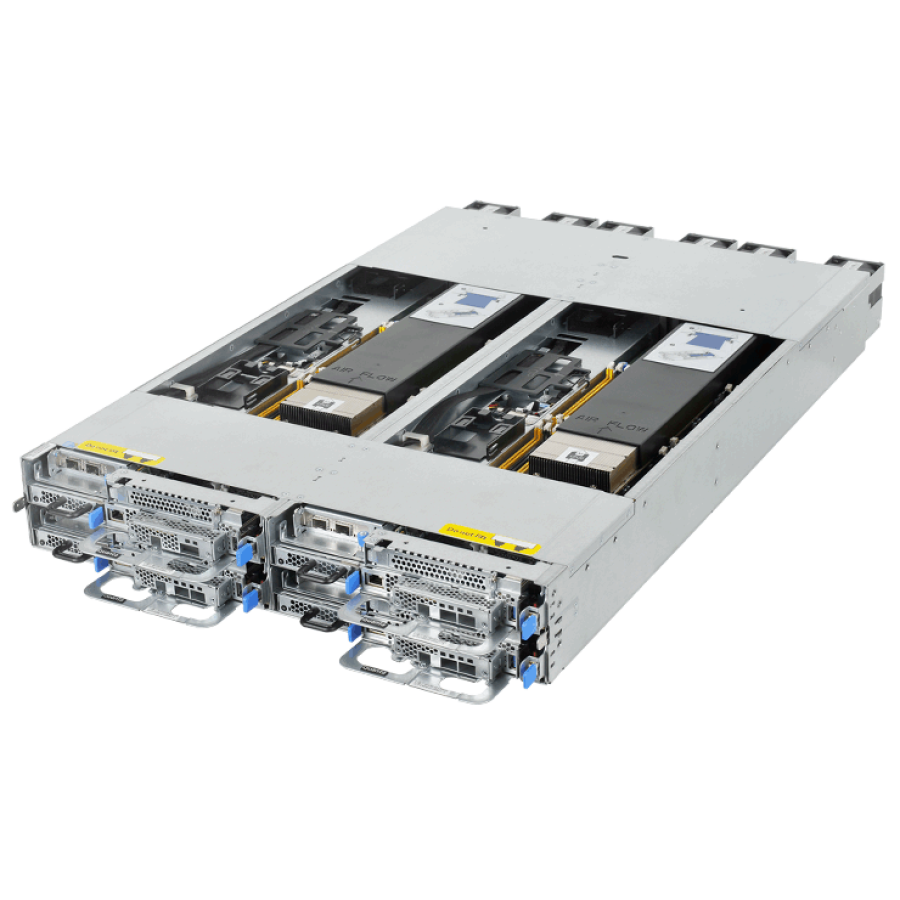

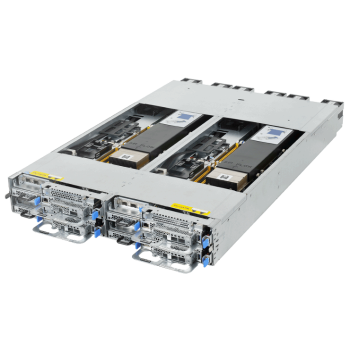

The Rackgo X F06A is designed for the highest compute density with four nodes in a 2 OU space. Each node can install up to two SATADOMs for the operating system and up to four extra hot-swappable SSD/HDDs for cache or data storage. Its RAID-ready configuration preserves data integrity and avoids data corruption.
![]() | ![]() | ![]() |
Vanity Free Design for Better MTBF
By centralizing power supplies in the rack and removing unnecessary components from the system, the F06A enhances system MTBF by 58% compared to other conventional 2U4N systems in the market. This will avoid system downtime caused by component failure and minimize maintenance efforts.
About QCT
QCT (Quanta Cloud Technology) is a global datacenter solution provider extending the power of hyperscale datacenter design in standard and open SKUs to all datacenter customers. Product lines include servers, storage, network switches, integrated rack systems and cloud solutions, all delivering hyperscale efficiency, scalability, reliability, manageability, serviceability and optimized performance for each workload. QCT offers a full spectrum of datacenter products and services from engineering, integration and optimization to global supply chain support, all under one roof. The parent of QCT is Quanta Computer Inc., a Fortune Global 500 technology engineering and manufacturing company.
- Dimensions
- W x H x D (inch)21.1 x 3.5 x 34.6W x H x D (mm)536 x 89 x 880
- Expansion Slot
- Mezzanine slot(1) PCIe Gen3 x8 OCP network mezzanine SlotPCIe Slot(2) PCIe Gen3 x8 LP MD-2
- Front I/O

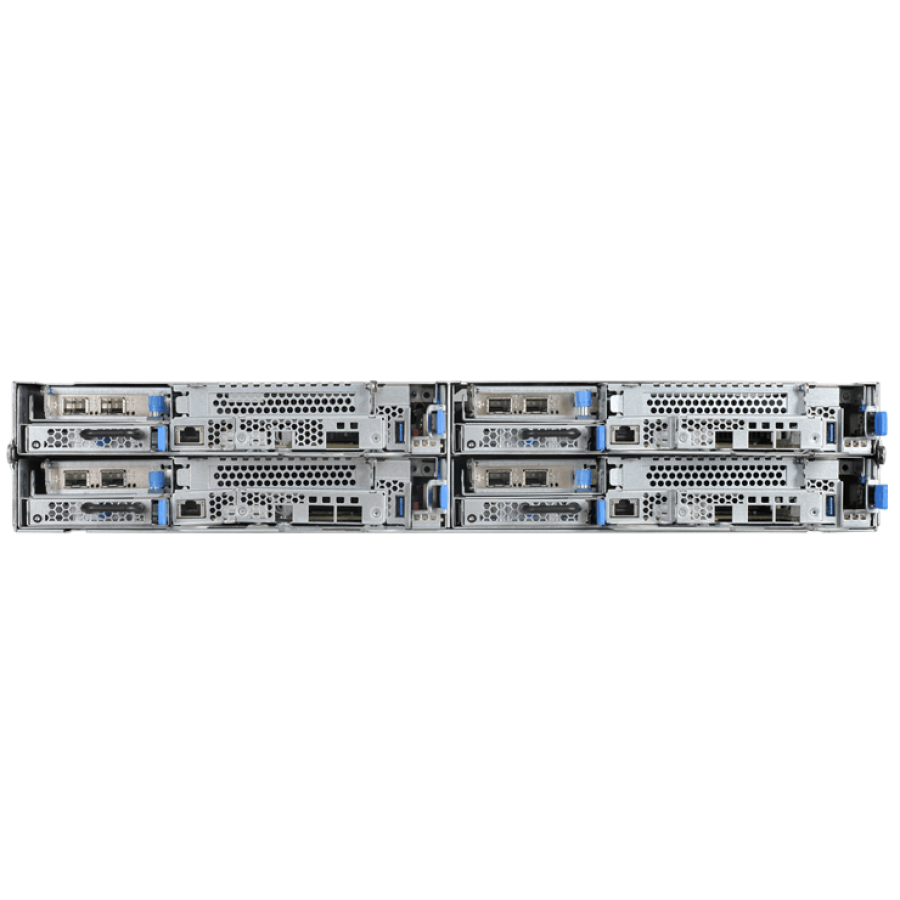

- (1) USB port per node, (1) OCP debug header per port, (1) Dedicated RJ45 management port, (1) Power button, (1) Reset button
- Fan

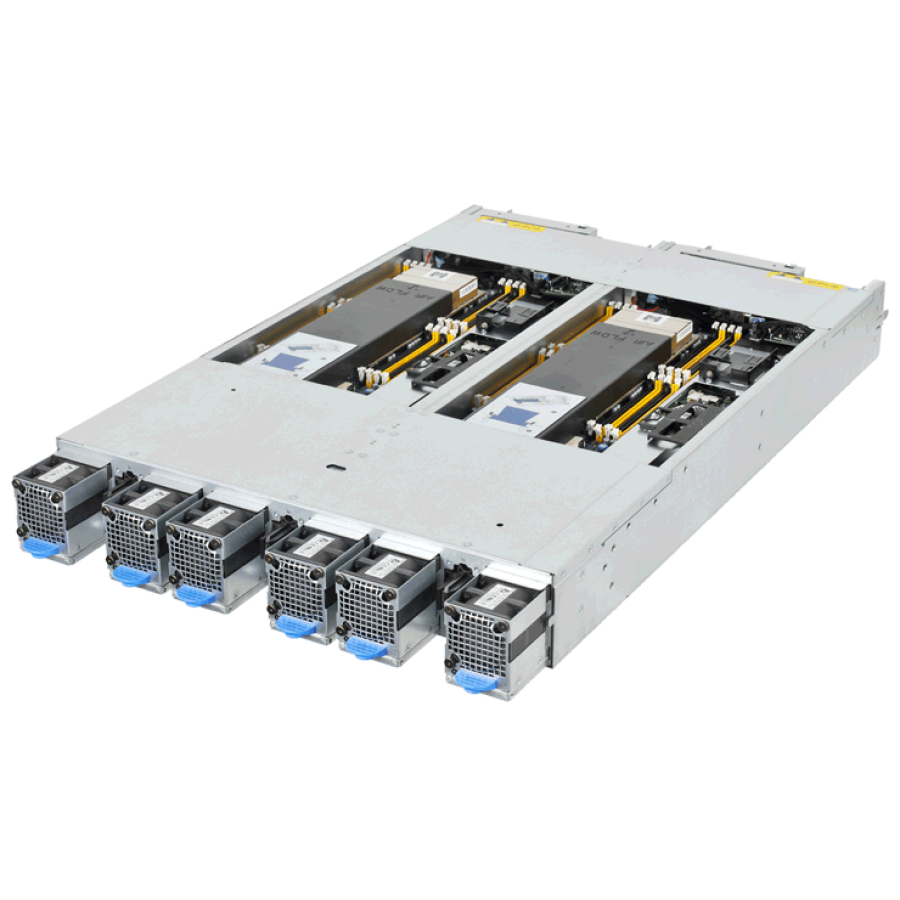

- (6) hot-plug system fans
- System Management
- Quanta Datacenter Manager 2.0/QDCM 2.0 (Optional)
- Operating Environment
- Operating temperature: 5°C to 35°C (41°F to 95°F)
Non-operating temperature: -40°C to 65°C (-40°F to 149°F)
Operating relative humidity: 50% to 85%RH.
Non-operating relative humidity: 20% to 90%RH
- Note
- **Please refer to Compatible Component List at QCT website (http://www.quantaqct.com/account/download)
- Storage
- (2) 2.5" hot-plug per node
- Weight (Max. Configuration)
- 45 (kg)
99 (lbs)
- Processor
- Processor TypeIntel® Xeon® processor E5-2600 v3 product familyMax. TDP Support135WNumber of Processors2Internal Interconnect6.4 / 7.2 / 8.0 GT/sL3 CacheUp to 45MB
- Chipset
- Intel® C610
- Memory
- Memory Type2133 MHz DDR4 RDIMM
2133 MHz DDR4 LRDIMMTotal Slots16CapacityUp to 256GB RDIMM,
UP to 512GB LRDIMMMemory Size16GB, 8GB RDIMM, 32GB LRDIMM
- Storage Controller
- OnboardIntel® C610: (6) SATA 6Gb/s ports
SATA RAID 0, 1, 10
- Onboard Storage
- (1) mSATA
- Video
- Integrated AST2400 with 8MB DDR3 video memory
- Network Controller
- QCT OCP network mezzanine options
**(Please refer to our Compatible Component List for more information)LOM(1) Dedicated 1GbE management port per node
Title | Version | Date | Size | |
---|---|---|---|---|
QCT Mezzanine Card Portfolio | v1 | 09/03/2015 | 379.75KB | ![]() |
QCT Product Portfolio | v5.0 | 18/06/2015 | 2.29MB | ![]() |
QCT Rack System Portfolio | v2.1 | 09/03/2015 | 760KB | ![]() |
Title | Version | Date | Size | |
---|---|---|---|---|
F06A CCL | 09/11/2015 | 29.44KB | ![]() |
Title | Version | Date | Size | |
---|---|---|---|---|
F06A BIOS | F06A3A05 | 05/01/2015 | 8.38MB | ![]() |
F06A BIOS | F06A3A02.01 | 17/10/2014 | 8.11MB | ![]() |
Rackgo X F06A manual | 1.0 | 16/06/2015 | 1.09MB | ![]() |
F06A BMC | 3.07 | 29/01/2015 | 29.93MB | ![]() |
F06A BMC | 3.02 | 05/11/2014 | 29.56MB | ![]() |
F06A BIOS | F06A3A06 | 09/07/2015 | 8.41MB | ![]() |
Title | Version | Date | Size | |
---|---|---|---|---|
F06A BMC | 3.08 | 09/07/2015 | 30.3MB | ![]() |
Title | Version | Date | Size | |
---|---|---|---|---|
F06A ON 10GbE 57811-QCT 10G | 26/08/2014 | 163MB | ![]() |
|
F06A ON 10GbE 82599EN-QCT 10G | 26/08/2014 | 346.08KB | ![]() |
|
F06A ON 10GbE X540 10G | 29/01/2015 | 3.34MB | ![]() |
|
F06A ON 1GbE i350 1G | 29/01/2015 | 3.27MB | ![]() |
|
F06A QS-2208-R5-PD32 6G RAID | 26/08/2014 | 295.8MB | ![]() |
|
F06A VGA | 26/08/2014 | 20.14MB | ![]() |
|
F06A LOM-i210 LOM 1G | 26/08/2014 | 1.42MB | ![]() |
Title | Version | Date | Size | |
---|---|---|---|---|
F06A LOM-i210 LOM 1G | 04/07/2014 | 910.38KB | ![]() |
|
F06A ON 10GbE 82599EN-QCT 10G | 26/08/2014 | 637.66KB | ![]() |
|
F06A QS-2208-R5-PD32 6G RAID | 26/08/2014 | 110.98KB | ![]() |
Title | Version | Date | Size | |
---|---|---|---|---|
F06A ME | 29/01/2015 | 2.03MB | ![]() |
|
F06A ON 10GbE 57811-QCT 10G | 02/02/2015 | 38.18MB | ![]() |
|
F06A ON 10GbE 82599EN-QCT 10G | 15/09/2014 | 74.93MB | ![]() |
|
F06A ON 10GbE X540 10G | 29/01/2015 | 205.67MB | ![]() |
|
F06A ON 1GbE i350 1G | 26/08/2014 | 77.79MB | ![]() |
|
F06A QS-2208-R5-PD32 6G RAID | 26/08/2014 | 9.89MB | ![]() |
|
F06A RSTe HDD Controller | 26/08/2014 | 86.46MB | ![]() |
|
F06A USB3 USB Controller | 26/08/2014 | 6.42MB | ![]() |
|
F06A VGA | 04/07/2014 | 35.52MB | ![]() |
|
F06A Chipset | 04/07/2014 | 10.28MB | ![]() |
|
F06A LOM-i210 LOM 1G | 04/07/2014 | 77.79MB | ![]() |
Title | Version | Date | Size | |
---|---|---|---|---|
Safety Information Russian Language | v1 | 18/06/2014 | 556KB | ![]() |
Safety Information Simplified Chinese for CCC | 18/06/2014 | 756KB | ![]() |
|
Safety Information Tranditional Chinese for BSMI | 18/06/2014 | 619KB | ![]() |
|
Safety Information English for UL | 18/06/2014 | 295KB | ![]() |
|
Safety Information French for CUL | 18/06/2014 | 404KB | ![]() |
F06A
High Density 2U4N System with Optimal IO Expansion
- 2U 4Node System 144 CPU Cores in Total
- Open Rack 1.0 Compatible
- Latest Generation Platform with DDR4
- Flexible OCP Network Option
- Cold Aisle Serviceability
-
$AUD $6,802.95
*RRP Pricing*To View Channel Discounts Please Login
